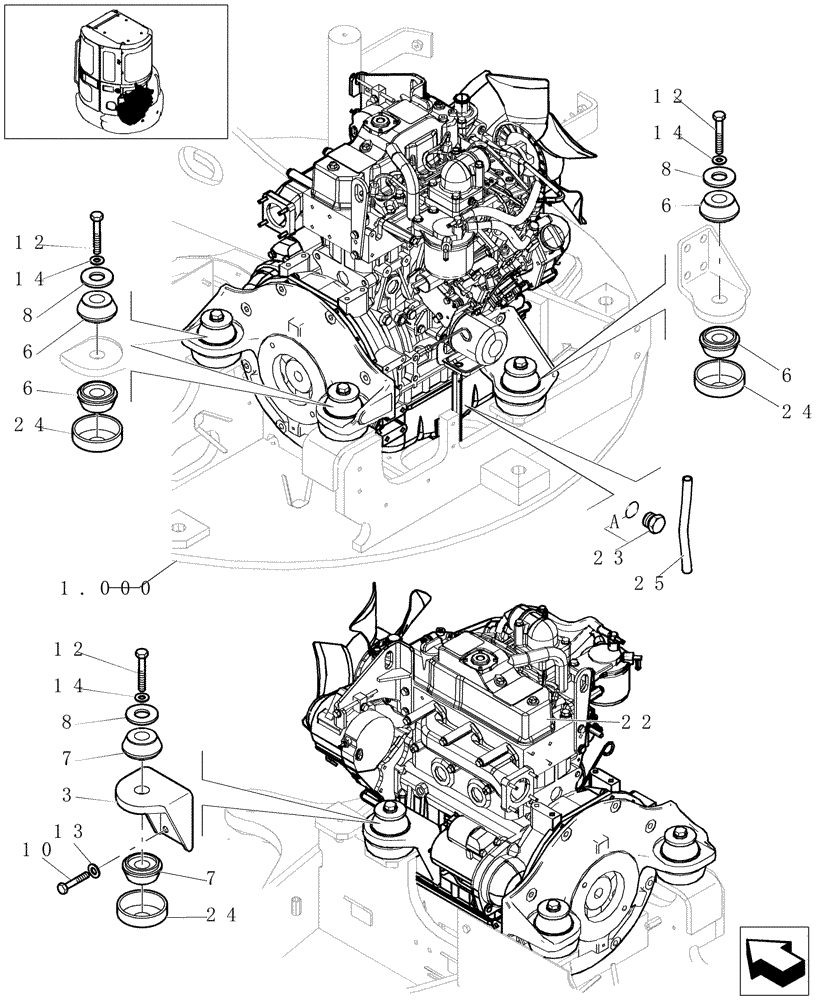

Запчасти Case CX31B (5.0604[05]) - ENGINE INSTALLATIONS (HEATER&COOLER, CAB) - 747939020 (10) - ENGINE

3

72280519

BRACKET

1шт.

6

72280520

RUBBER MOUNTING

6шт.

7

72280521

RUBBER MOUNTING

2шт.

8

72951034

WASHER

4шт.

10

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

TE M10x25

4шт.

12

11114634

SCREW

TE M12x120

4шт.

13

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

4шт.

14

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

22

72280301

ENGINE

1шт.

See Page 0.021

1шт.

23

72280522

SET OF PARTS

1шт.

23a

72280525

O-RING

1шт.

24

72280528

COVER

4шт.

25

72280529

HOSE

1шт.
