(1.300[17]) - GUARDS - COVER ASSY UNDER

Запчасти Case CX31B (1.300[17]) - GUARDS - COVER ASSY UNDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

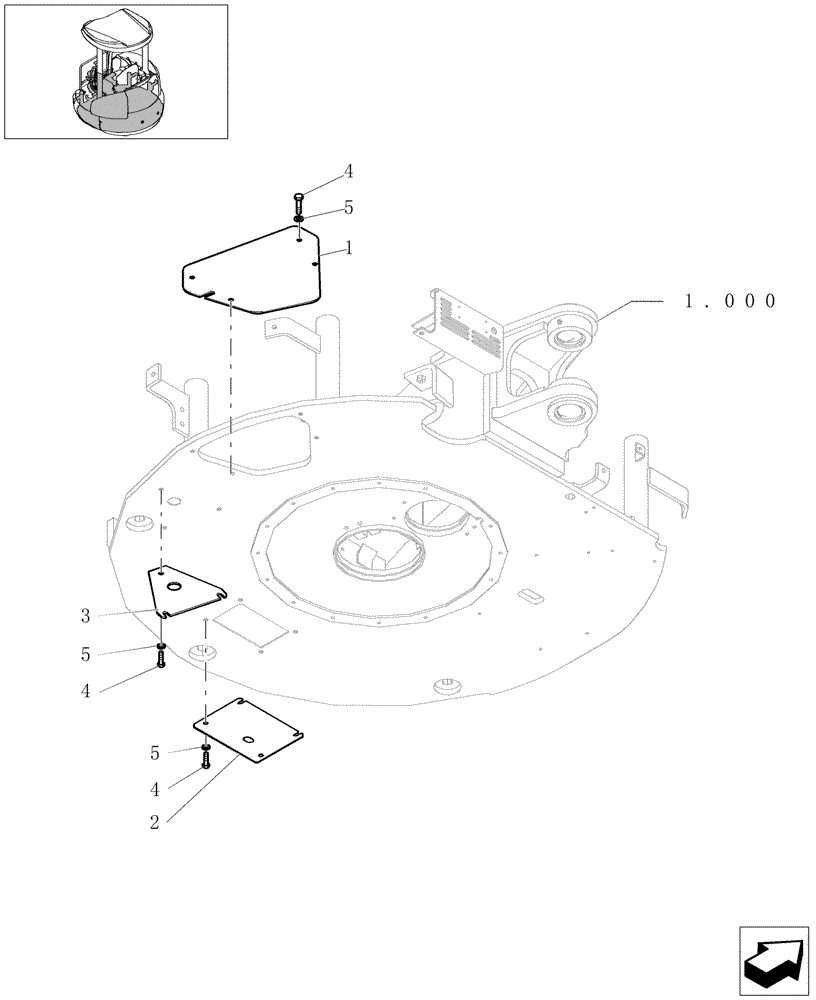

Схема запчастей Case CX31B - (1.300[17]) - GUARDS - COVER ASSY UNDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
1
5
1.000
4
4
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87571528

COVER

1шт.

2

87571530

COVER

1шт.

3

87571532

COVER

1шт.

4

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

11шт.

5

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

11шт.

Выбрано товаров: 5
