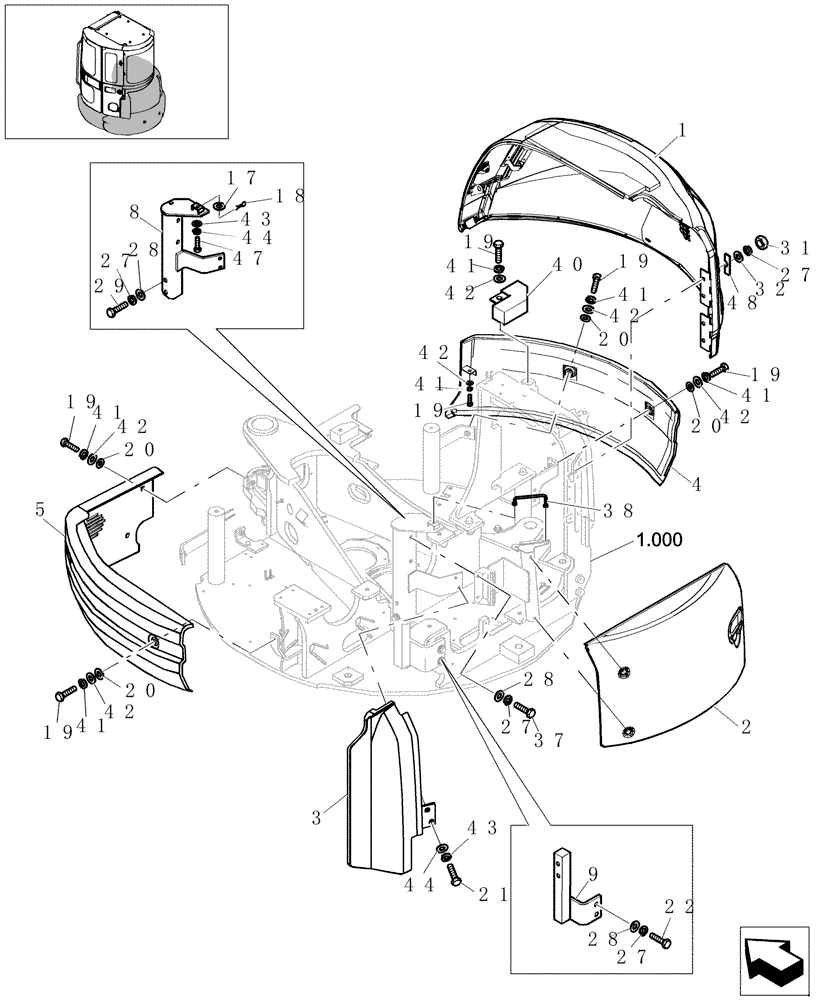

Запчасти Case CX31B (1.300[03]) - GUARDS - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

72171316

COVER

1шт.

See Page 1.300 05

1шт.

2

72171268

COWLING

1шт.

See Page 1.300 06

1шт.

3

72281016

COVER ASSY

1шт.

See Page 1.300 08

1шт.

4

72280973

COVER ASSY

1шт.

See Page 1.300 09

1шт.

5

72280936

COVER ASSY

1шт.

See Page 1.300 10

1шт.

8

87377336

STAY

1шт.

9

87545295

BRACKET

1шт.

17

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

18

72275189

COTTER PIN

1шт.

19

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

7шт.

20

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

6шт.

21

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

22

11113034

SCREW

TE M12x45

2шт.

27

10571979

LOCK WASHER,M12

10шт.

28

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

6шт.

29

11112634

SCREW

TE M12x35

2шт.

31

11702924

NUT

M12

4шт.

32

13550521

WASHER,12.2mm ID x 24mm OD x 3mm Thk

Ø12

4шт.

37

11112434

BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

38

72280954

STAY

1шт.

Up To S/N N7GN05456

1шт.

38

87567691

STAY

1шт.

From S/N N7GN05457

1шт.

40

72280992

BOX

1шт.

See Page 1.300 16

1шт.

41

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

7шт.

42

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

7шт.

43

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

44

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

47

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

48

72271002

SHIM

1шт.

From S/N N7GN05457

1шт.
