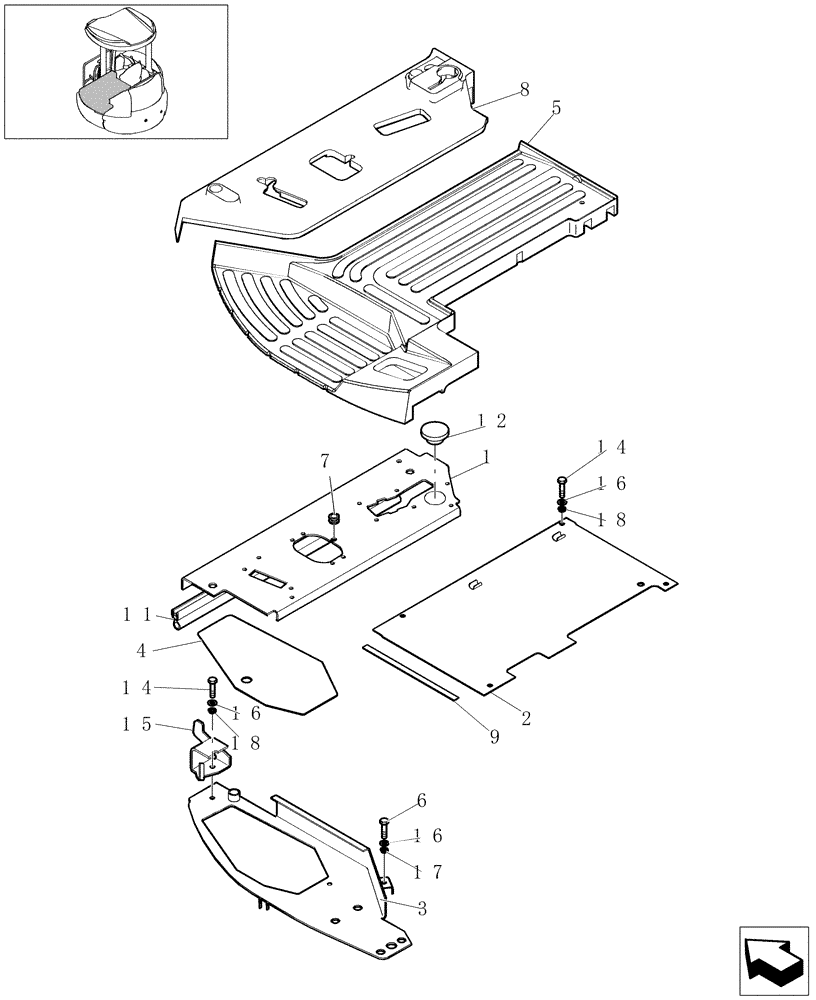

Запчасти Case CX31B (1.270[02A]) - FLOOR - CAB (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

72280819

PLATE

1шт.

2

72280820

COVER

1шт.

3

87567268

BRACKET

1шт.

4

87567270

COVER

1шт.

5

87567271

FLOOR MAT

1шт.

6

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

72203027

GROMMET,6mm ID x 15mm OD x 12.5mm Thk

1шт.

8

72280825

FLOOR MAT

1шт.

9

72280826

RUBBER WEATHERSTRIP

1шт.

11

72280827

RUBBER WEATHERSTRIP

1шт.

12

72272478

PLUG

1шт.

14

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

15

87667863

PLATE

1шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

17

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

18

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.
