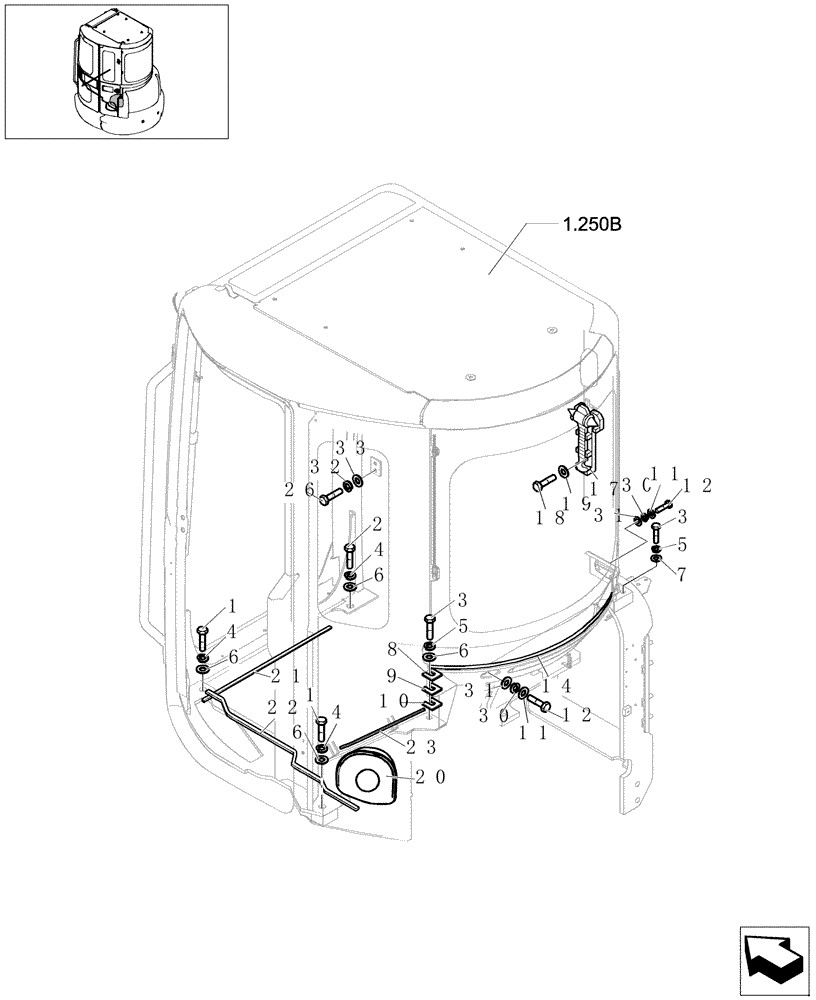

Запчасти Case CX31B (1.250[05]) - CAB - INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

11119934

SCREW

TE M16x100

2шт.

2

11118934

BOLT,Hex, M16 x 50mm, Cl 10.9

TE M16x50

1шт.

3

11113034

SCREW

3шт.

4

10572179

LOCK WASHER,M16

3шт.

5

10571979

LOCK WASHER,M12

3шт.

6

13580121

WASHER,16.4mm ID x 32mm OD x 4mm Thk

Ø16

3шт.

7

13550521

WASHER,12.2mm ID x 24mm OD x 3mm Thk

Ø12

3шт.

8

72954288

SHIM,1.2mm Thk

1.0

1шт.

9

72954289

SHIM,2mm Thk

2.0

1шт.

10

72954290

SHIM,3.2mm Thk

3.2

1шт.

11

72209123

WASHER

3шт.

12

13276624

SCREW,M6 x 25mm

M6x25

3шт.

14

72280840

STRIP

Rubber

1шт.

17

72951535

HAMMER

1шт.

18

15903304

SCREW,Pozidriv Pan Hd, M4.2 x 1.4 x 22mm

M8x22

2шт.

19

10519321

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

1шт.

20

72283878

COVER

1шт.

21

72282072

RUBBER WEATHERSTRIP

1шт.

22

72282073

RUBBER WEATHERSTRIP

1шт.

23

72282074

RUBBER WEATHERSTRIP

1шт.

26

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

30

10571579

LOCK WASHER,M6

3шт.

31

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

32

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

33

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
