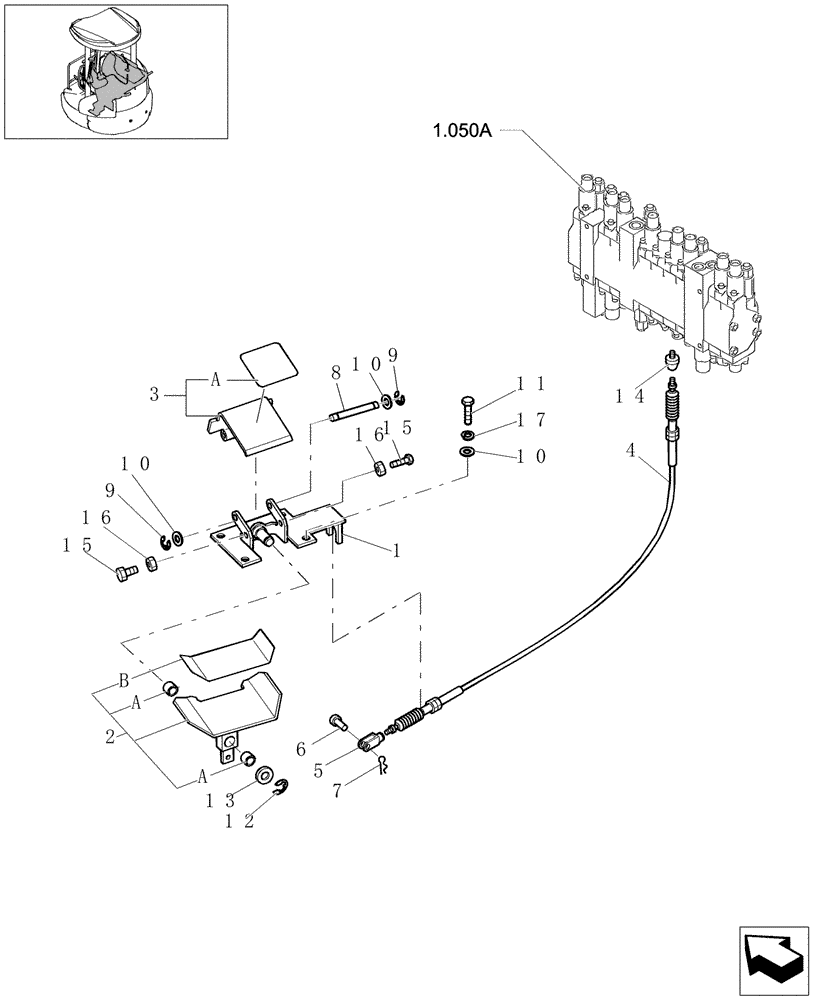

Запчасти Case CX31B (1.070[07]) - CONTROL OPERATORS - PEDAL INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

72281788

SUPPORT

1шт.

2

87345177

SET OF PARTS

1шт.

2a

72204650

BUSHING

2шт.

2b

72283587

PLATE

1шт.

3

72283588

COVER

1шт.

3a

72283590

PLATE

1шт.

4

72283926

FLEXIBLE CABLE

1шт.

5

87345176

BALL JOINT

1шт.

6

87345175

PIN

1шт.

7

72272933

COTTER PIN,2.4mm x 24.2mm L

1шт.

8

87571709

PIN

1шт.

9

72951673

RING

D=7

2шт.

10

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

11

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

12

72285809

RING

D=12

1шт.

13

14496821

WASHER,15mm ID x 28mm OD x 2.5mm Thk

2шт.

14

72283600

ARTICULATION

1шт.

15

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

16100824

NUT,M8, Cl 10

2шт.

17

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.
