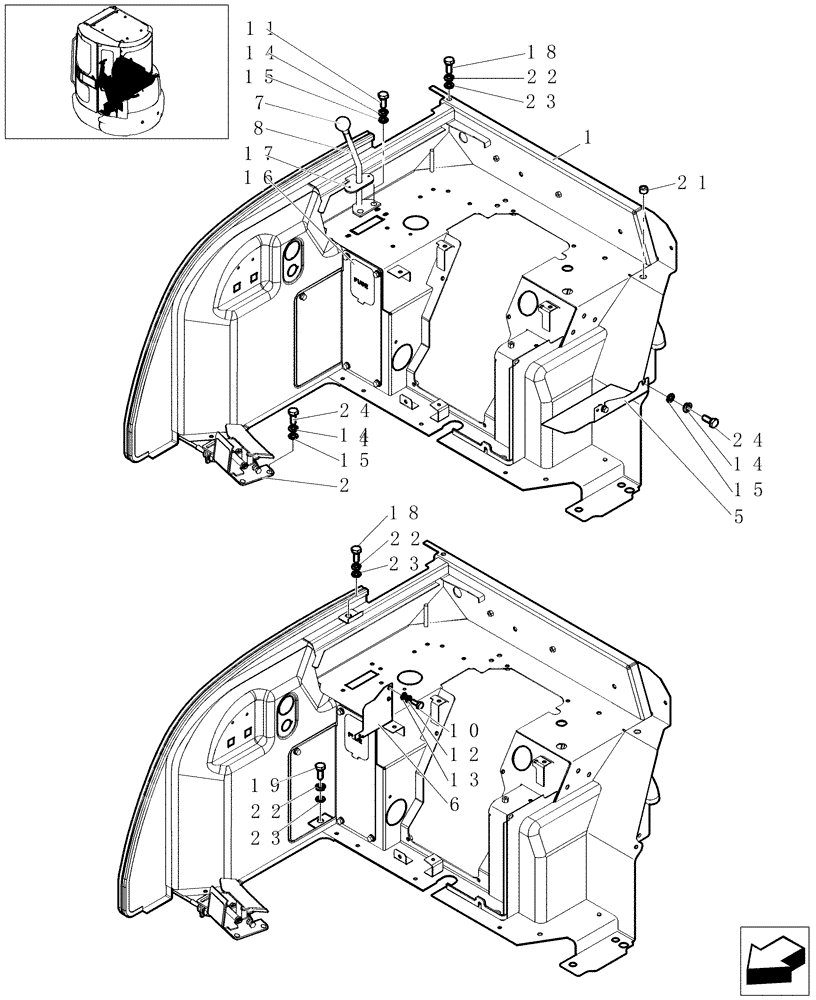

Запчасти Case CX31B (1.070[03]) - CONTROL OPERATORS - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87545791

STAND

1шт.

Assy See Page 1.070 05

1шт.

From S/N XXD

1шт.

1

PW10M00009F1

STAND

1шт.

Assy See Page 1.070 05

1шт.

Up To S/N XXD

1шт.

2

87345179

SET OF PARTS

1шт.

Assy See Page 1.070 07

1шт.

5

87546076

COVER

1шт.

6

87546078

COVER

1шт.

7

72272315

HANDLE GRIP

1шт.

8

87546396

LEVER

1шт.

10

10902034

SCREW

TE M6x12

2шт.

11

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

12

10571579

LOCK WASHER,M6

2шт.

13

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

14

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

5шт.

15

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

5шт.

16

72281772

GROMMET

1шт.

17

72281773

GROMMET

1шт.

18

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

19

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

1шт.

21

72281776

PLUG

1шт.

22

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

23

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

24

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.
