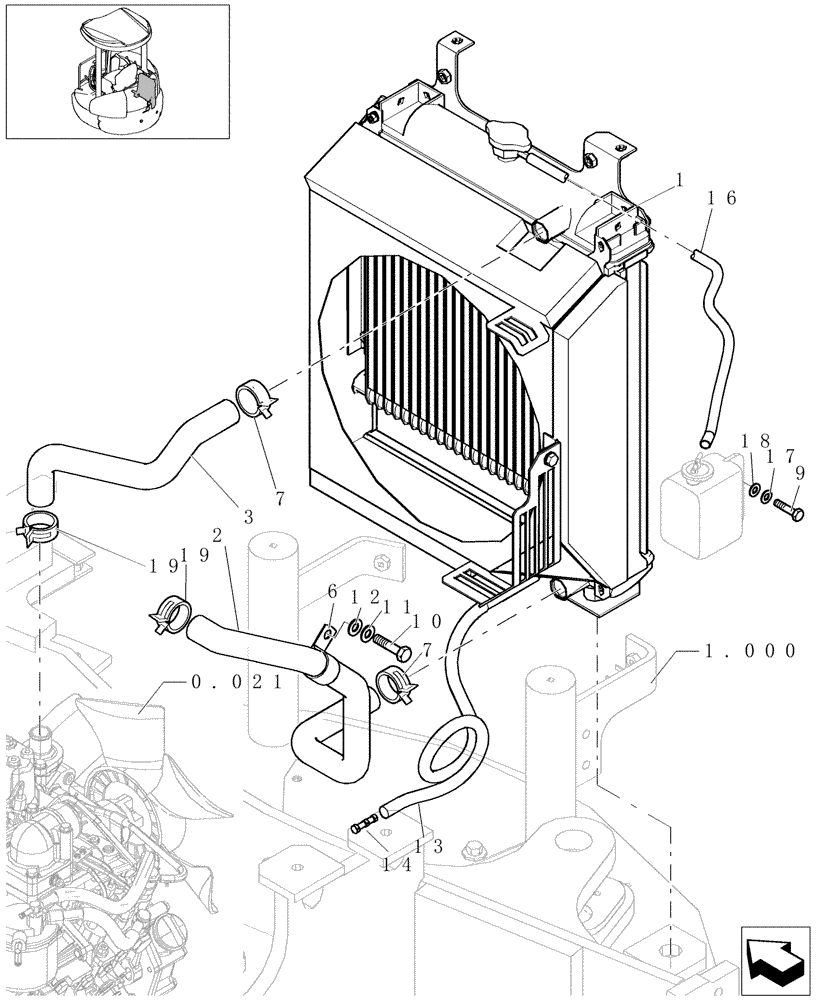

Запчасти Case CX31B (0.003[02]) - RADIATOR (10) - ENGINE

1

72171326

RADIATOR

1шт.

2

72280533

LARGE HOSE

HOSE,LARGE

1шт.

3

72280534

LARGE HOSE

HOSE,LARGE

1шт.

6

71421085

CLIP

1шт.

7

13425577

HOSE CLIP,34.4mm - 37.3mm

4шт.

9

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

10

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

12

72209113

WASHER

Ø8

1шт.

13

72950996

TUBE,13.2 mm ID, 17.5 mm OD, 640 mm Length

1шт.

14

72280535

PLUG

1шт.

16

72952548

TUBE,13.2 mm ID, 17.5 mm OD, 300 mm Length

1шт.

17

10571579

LOCK WASHER,M6

2шт.

18

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

19

87526520

CLAMP

2шт.
