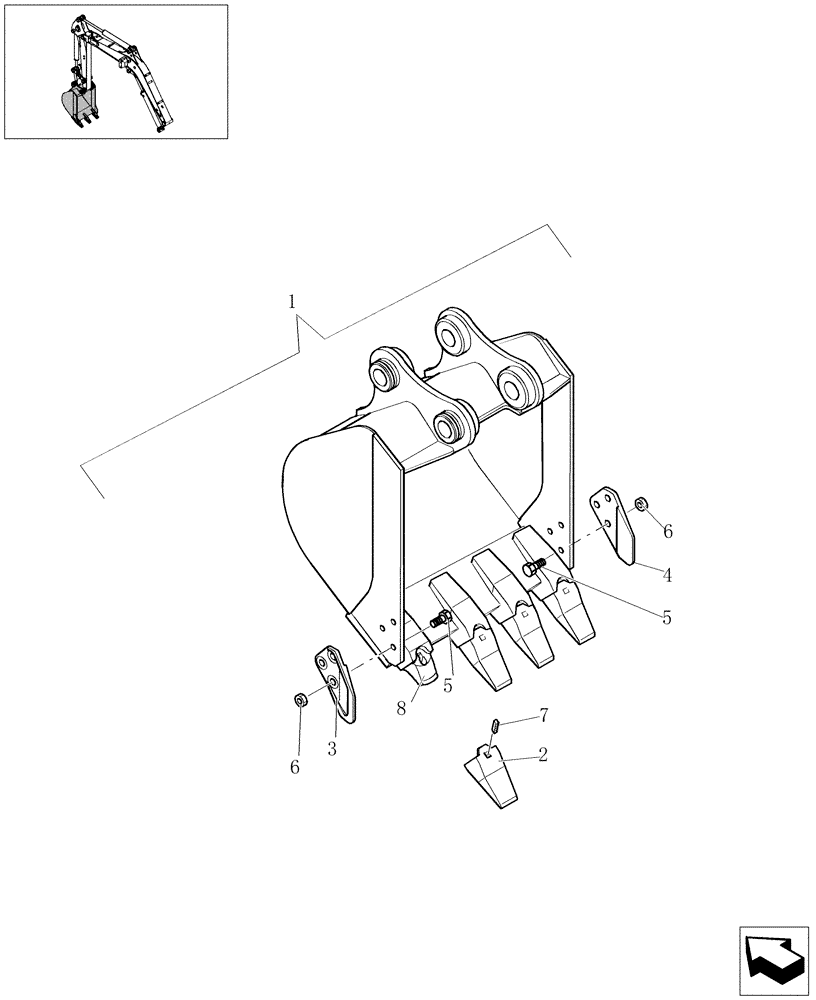

Запчасти Case CX31B (5.0105[01]) - BUCKET (L=500MM) - 747640010 (84) - BOOMS, DIPPERS & BUCKETS

1

72274140

BUCKET

L=500

1шт.

2

72274032

BUCKET TOOTH

4шт.

3

72270910

SIDE PLATE

1шт.

4

72270909

SIDE PLATE

1шт.

5

11112434

BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd

6шт.

6

11702924

NUT

M12

6шт.

7

72274034

KEY

4шт.

8

72274033

BUCKET TOOTH SHANK

4шт.
