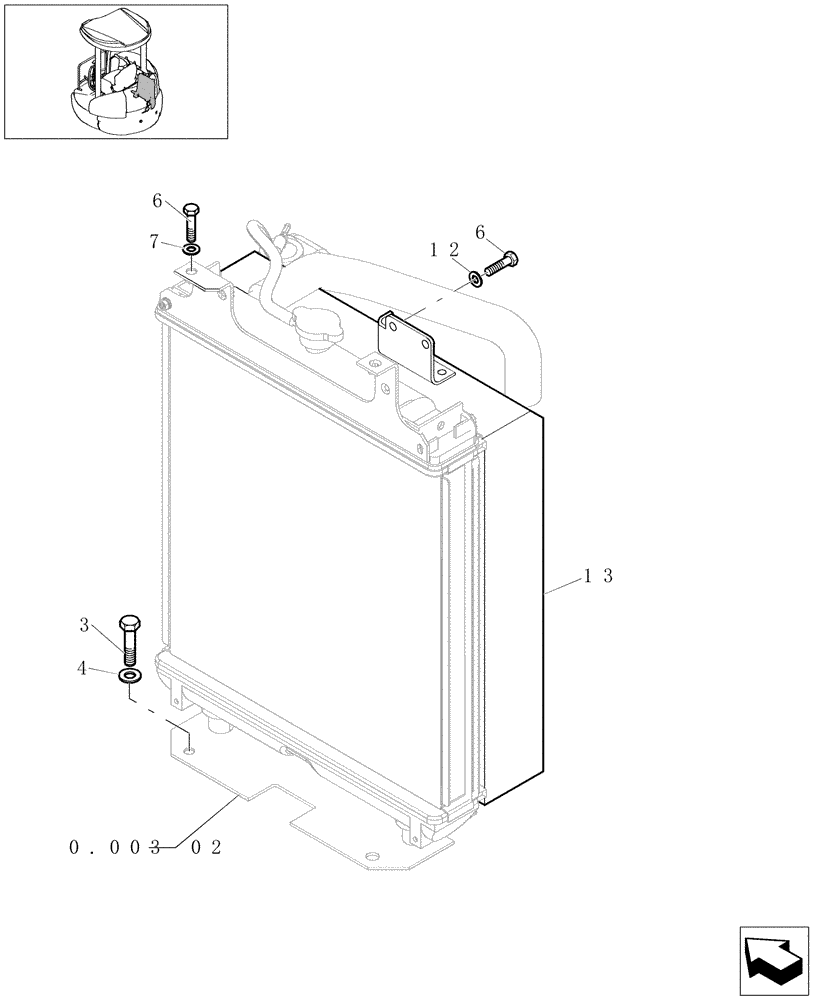

Запчасти Case CX31B (0.003[01A]) - RADIATOR - INSTAL (10) - ENGINE

3

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

4

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

2шт.

6

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

8шт.

12

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

13

87568209

SHROUD

4шт.

Assy See Page 0.003 3A

1шт.
