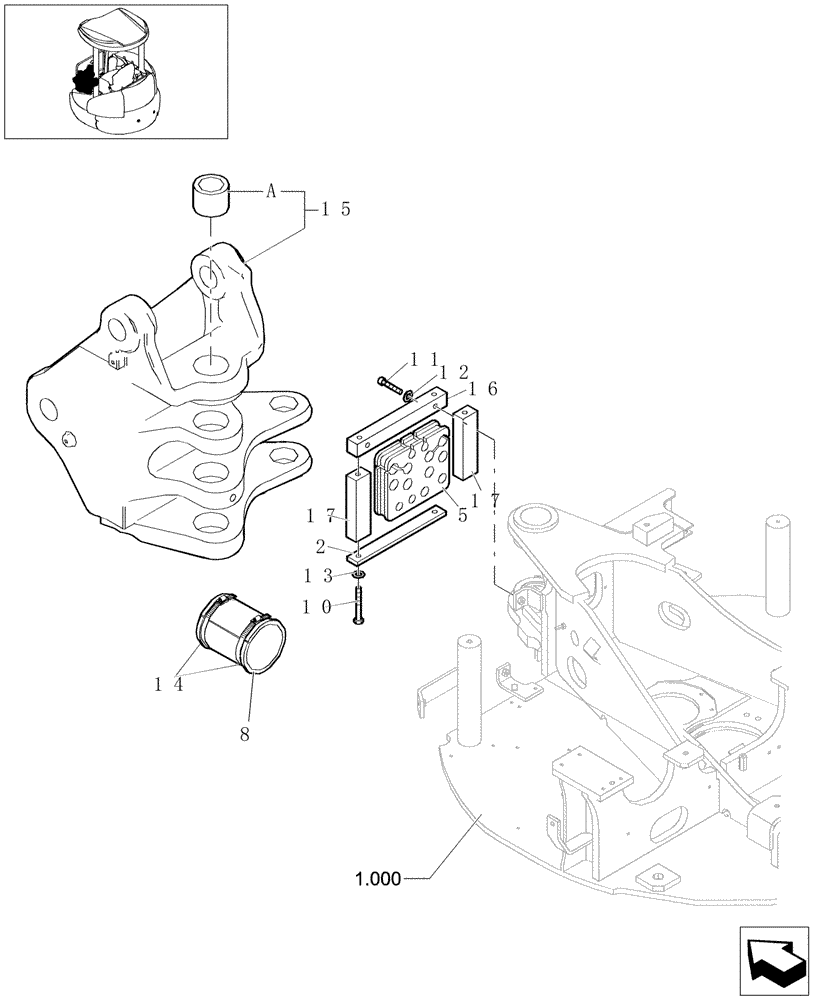

Запчасти Case CX31B (5.0088[08]) - SWING BRACKET SUPPORT (SAFETY VALVE) - 747936070, 747936080 (84) - BOOMS, DIPPERS & BUCKETS

2

87566473

PLATE

2шт.

5

87480350

RUBBER BUSHING

1шт.

8

72280509

GROMMET

1шт.

10

11108434

BOLT,Hex, M10 x 110mm, Cl 10.9, Full Thd

2шт.

11

14420774

SCREW,M10 x 55mm, Cl 12.9

2шт.

12

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

13

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

14

14560387

HOSE CLIP,Black, 380mm L

2шт.

15

87566495

HOLDER

1шт.

15a

72280495

BUSHING,65mm ID x 75mm OD x 44mm L

1шт.

16

87566475

PLATE

1шт.

17

87578440

PLATE

2шт.
