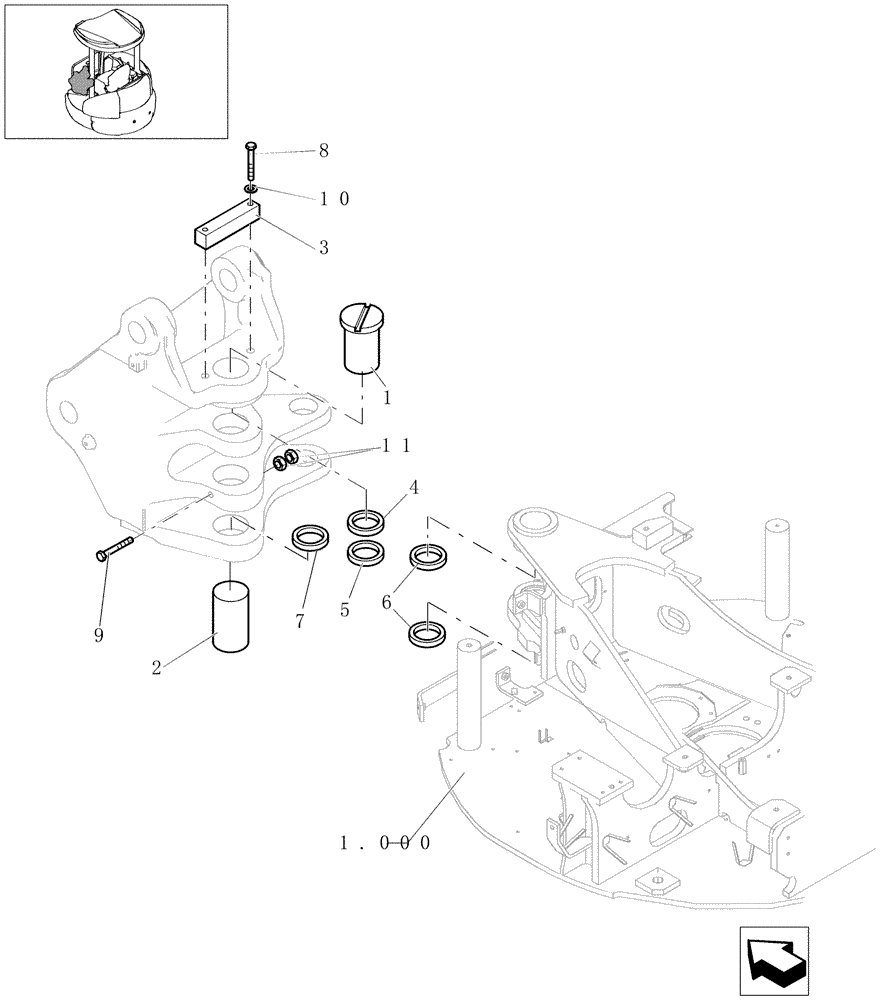

Запчасти Case CX31B (2.006[02]) - SWING BRACKET SUPPORT (84) - BOOMS, DIPPERS & BUCKETS

1

72281917

PIN,65mm OD x 163mm L

1шт.

2

72281920

PIN

1шт.

3

87537492

PLATE

1шт.

4

72951060

WASHER

1шт.

5

72951061

WASHER

1шт.

6

72950429

SEAL,65mm ID x 80mm OD x 4mm Thk

2шт.

7

72951059

SHIM,0.5mm Thk

1шт.

8

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

9

16162934

SCREW,M12 x 190mm, Cl 10.9

TE M12x190

1шт.

10

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

11

11702924

NUT

M12

2шт.
