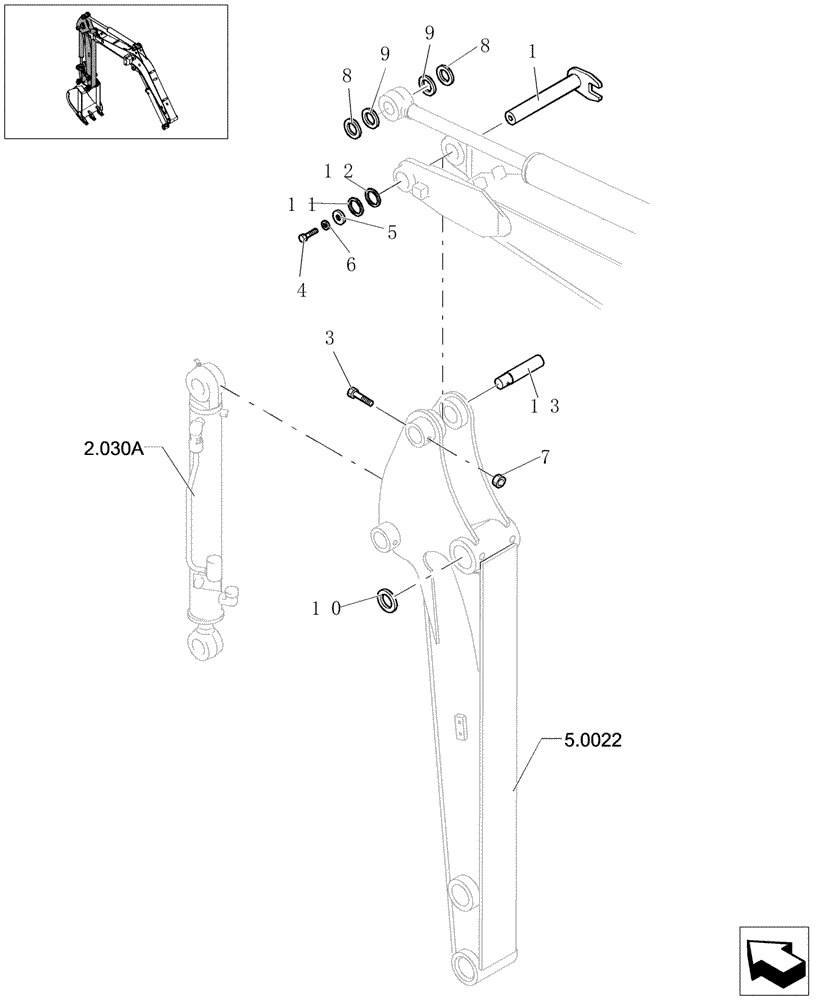

Запчасти Case CX31B (2.003[03]) - ARM ASSEMBLY - LONG (84) - BOOMS, DIPPERS & BUCKETS

1

87571092

PIN

1шт.

3

72951198

WASHER

1шт.

4

11127534

SCREW

TE M16x35

1шт.

5

11107934

SCREW

TE M10x85

1шт.

6

13580121

WASHER,16.4mm ID x 32mm OD x 4mm Thk

Ø16

1шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

8

72950989

SHIM,0.5mm Thk

2шт.

9

72950990

SHIM,47mm ID x 70mm OD x 0.90mm Thk

1шт.

10

72270060

SHIM,0.5mm Thk

1шт.

11

72951199

SHIM,0.5mm Thk

1шт.

12

72951200

SHIM

2шт.

13

72951839

PIN,45mm OD x 157mm L

1шт.
