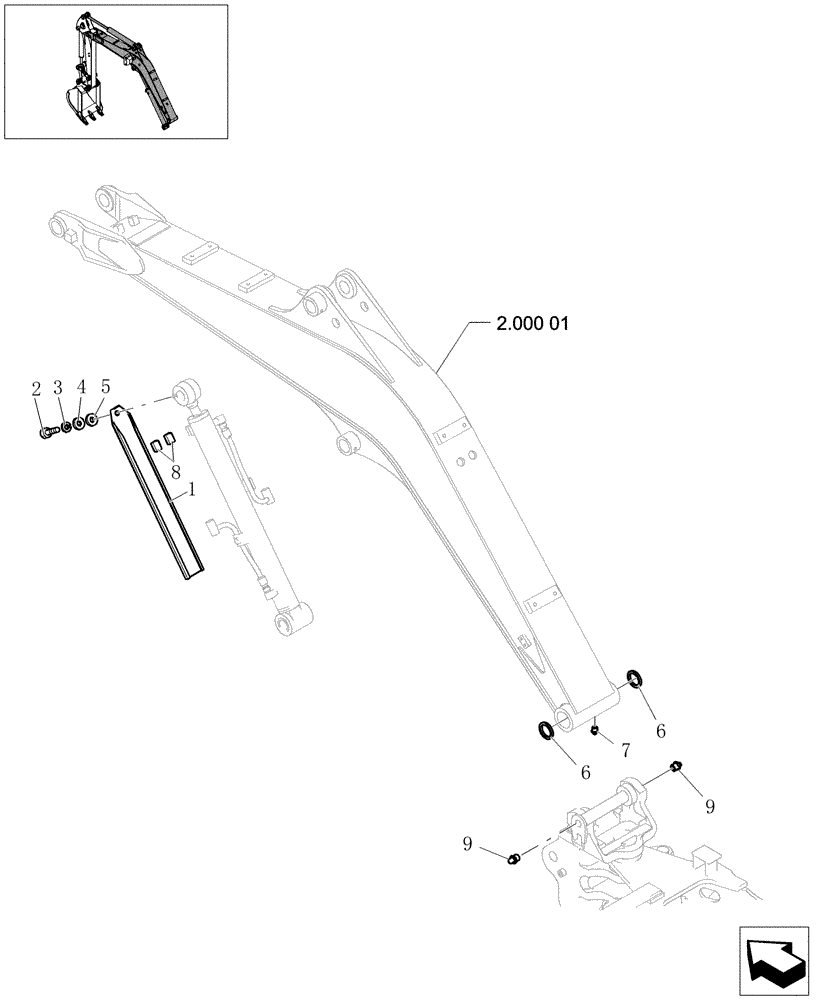

Запчасти Case CX31B (2.000[03]) - BOOM ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

1

72286397

COVER

1шт.

2

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

3

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

4

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

1шт.

5

72286175

WASHER

1шт.

6

72950428

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

7

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

8

72283760

SPACER,25mm ID x 27mm OD x 30mm L

2шт.

9

72283478

LUBE NIPPLE

2шт.
