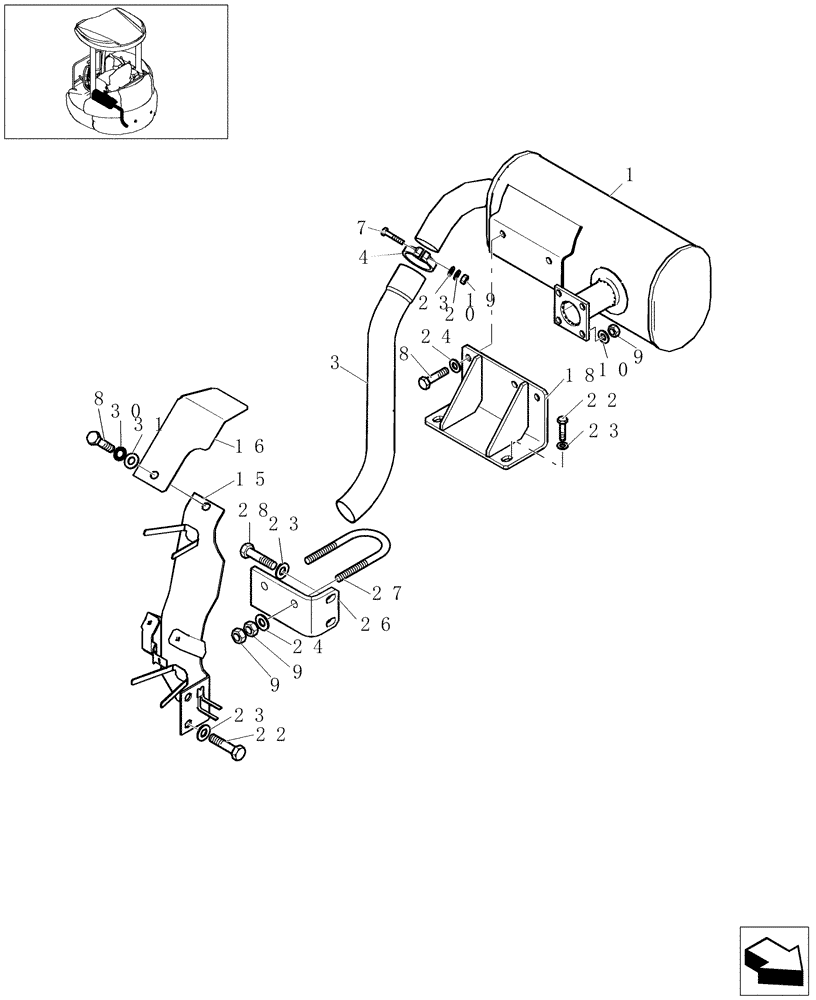

Запчасти Case CX31B (0.002[01]) - MUFFLER (10) - ENGINE

1

72280591

MUFFLER

1шт.

3

72280592

EXHAUST SYSTEM PIPE

1шт.

4

87540125

CLAMP

1шт.

7

11107434

SCREW,Hex, M10 x 60mm, Cl 10.9

TE M10x60

1шт.

8

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

9

16100824

NUT,M8, Cl 10

8шт.

10

14496525

WASHER

Ø8

4шт.

15

87568657

COVER

1шт.

16

72280594

COVER

1шт.

18

87540070

BRACKET

1шт.

19

11701724

NUT

M10

1шт.

20

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

22

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

6шт.

23

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

9шт.

24

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

6шт.

26

87540072

PLATE

1шт.

27

72280597

U-BOLT

1шт.

28

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

30

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

31

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.
