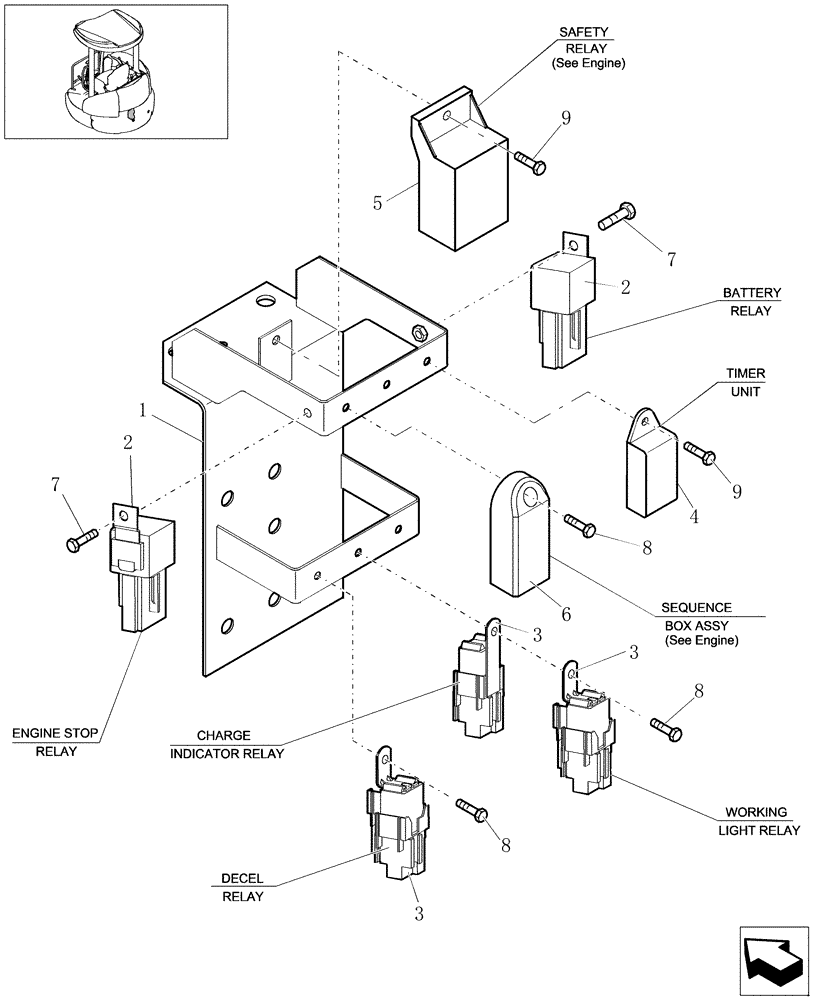

Запчасти Case CX31B (1.220C[01]) - RELAY ASSY - COMPONENTS (55) - ELECTRICAL SYSTEMS

1

PM24E01072P3

PLATE

1шт.

2

72951961

RELAY

(Used for Battery, Engine Stop)

2шт.

3

72951951

RELAY

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

4

72951952

RELAY

(Used for Sequence Box)

1шт.

5

72281260

RELAY

(Used for Safety)

1шт.

6

VV12921177920

TIMER

(Used for Timer - Glow Plug)

1шт.

7

72952742

BOLT

TE M5x12

2шт.

8

72951648

BOLT

TE M6x16

3шт.

9

72951649

BOLT

TE M6x20

2шт.
