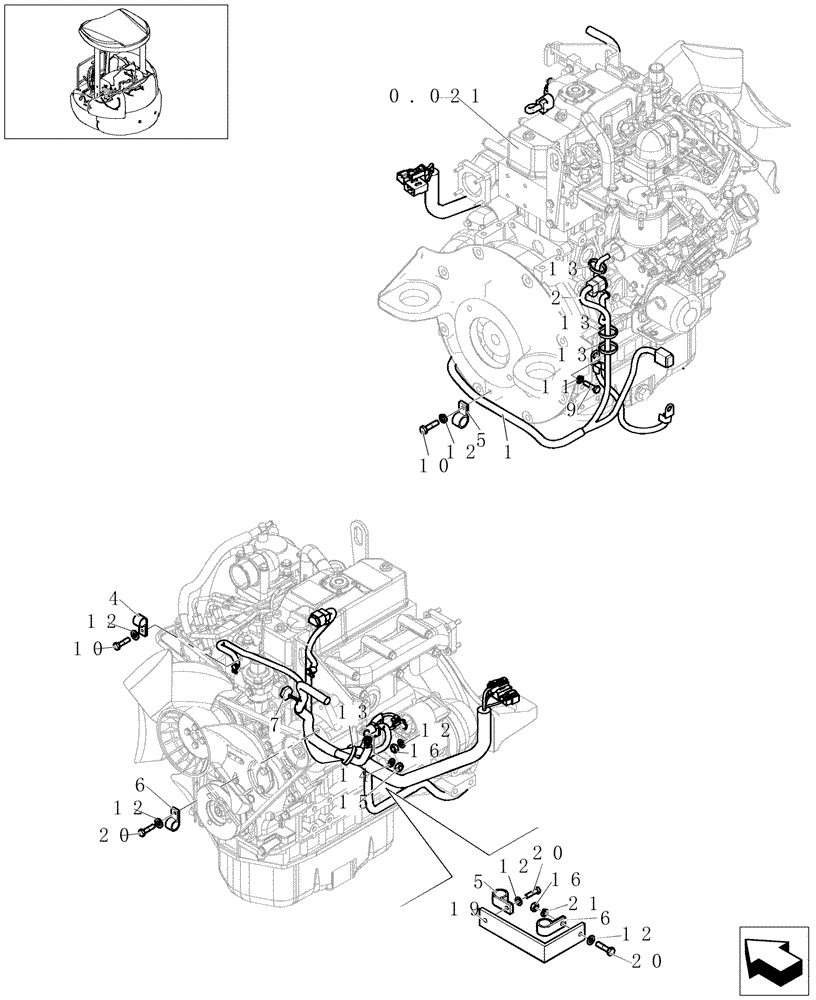

Запчасти Case CX31B (1.220[07]) - ELECTRIC SYSTEM - ENGINE HARNESS (55) - ELECTRICAL SYSTEMS

1

72286272

HARNESS

1шт.

2

72953078

CABLE

1шт.

4

71415887

CLIP

1шт.

5

71405773

CLAMP

3шт.

6

71405745

CLAMP,18mm ID, 12.5mm Bolt Hole, P Type

2шт.

7

72273958

SENSOR

1шт.

9

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

2шт.

10

16043034

SCREW,M8 x 12mm, Cl 10.9

TE M8x12

2шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

5шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

4шт.

14

13550221

WASHER

Ø6

1шт.

15

15896224

NUT,Hex, M6

M6

1шт.

16

16100824

NUT,M8, Cl 10

2шт.

19

72281117

PLATE

1шт.

20

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

21

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.
