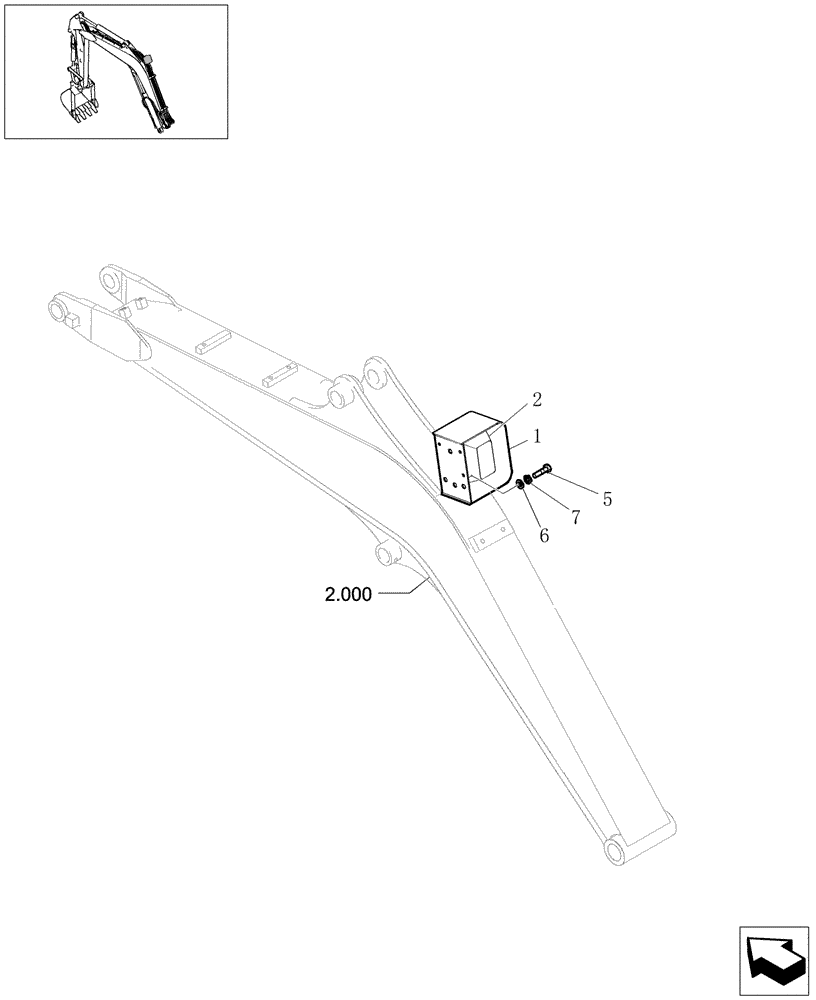

Запчасти Case CX31B (1.220[04]) - ELECTRIC SYSTEM - WORKING LIGHT (BOOM) (55) - ELECTRICAL SYSTEMS

1

PM80S00007F1

LIGHT ASSY.

1шт.

See Page 1.220B

1шт.

2

72285987

COVER

1шт.

5

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

2шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.
