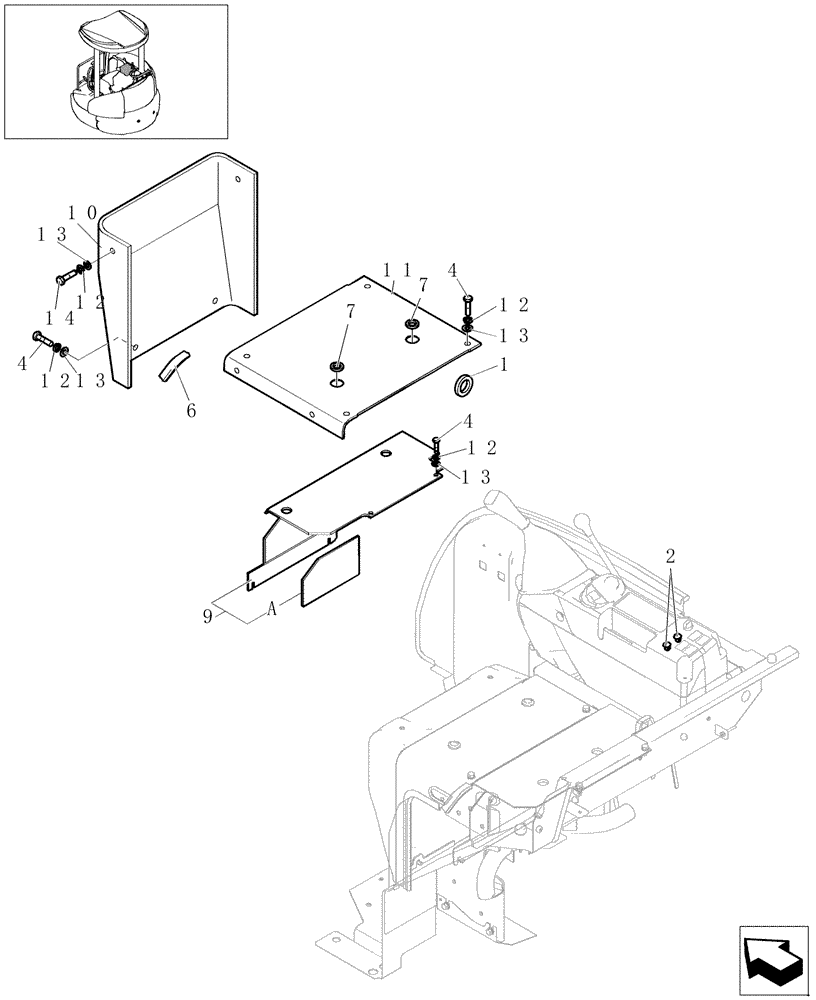

Запчасти Case CX31B (1.280[02A]) - HEATING (WITHOUT HEATER) (50) - CAB CLIMATE CONTROL

1

72281281

GROMMET

1шт.

2

72281282

CAP

1шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

14шт.

6

72275674

JACK PISTON

1шт.

7

72281017

GROMMET

2шт.

9

87575172

COVER

1шт.

9a

87572078

INSULATOR

1шт.

10

87575176

COVER

M8

1шт.

11

87575178

COVER

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

14шт.

13

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

14шт.
