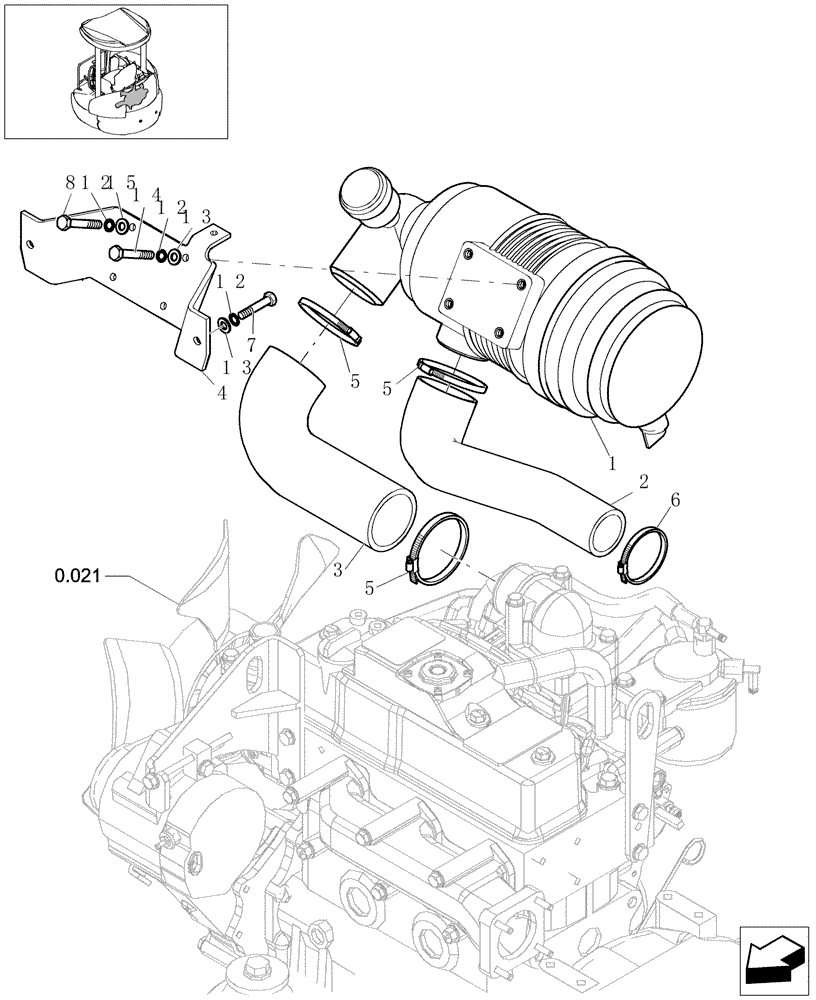

Запчасти Case CX31B (0.001[01]) - AIR CLEANER (10) - ENGINE

1

87567346

FILTER ASSY

1шт.

See Page 0.001A

1шт.

2

72280586

INTAKE AIR HOSE,37.00 mm ID x 290.00 mm

1шт.

3

72280587

HOSE,49.00 mm ID x 176.00 mm

1шт.

4

87542559

BRACKET

1шт.

5

87526525

CLAMP

3шт.

6

87526521

CLAMP

1шт.

7

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

8

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

13

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

14

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

15

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

2шт.
