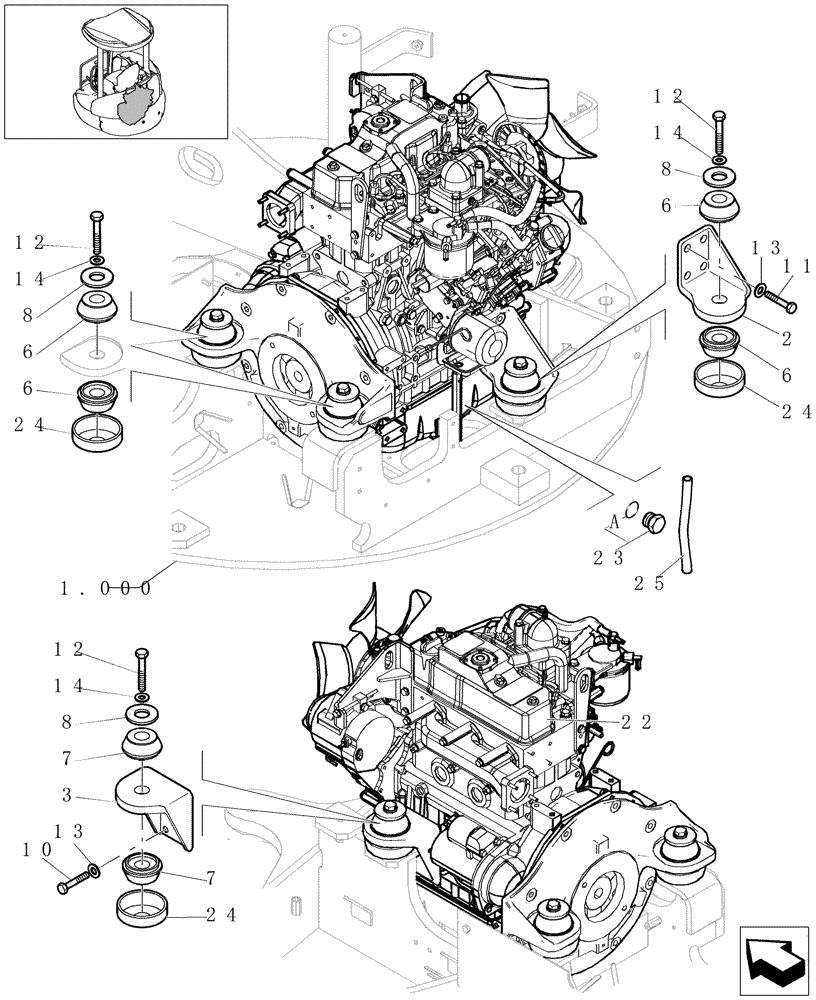

Запчасти Case CX31B (0.000[01]) - ENGINE INSTALLATIONS (10) - ENGINE

2

72280518

BRACKET

1шт.

3

72280519

BRACKET

1шт.

6

72280520

RUBBER MOUNTING

6шт.

7

72280521

RUBBER MOUNTING

2шт.

8

72951034

WASHER

4шт.

10

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

4шт.

11

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

4шт.

12

11114634

SCREW

TE M12x120

4шт.

13

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

8шт.

14

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

22

72280301

ENGINE

1шт.

See Page 0.021

1шт.

23

72280522

SET OF PARTS

1шт.

23a

72280525

O-RING

1шт.

24

72280528

COVER

4шт.

25

72280529

HOSE

1шт.
