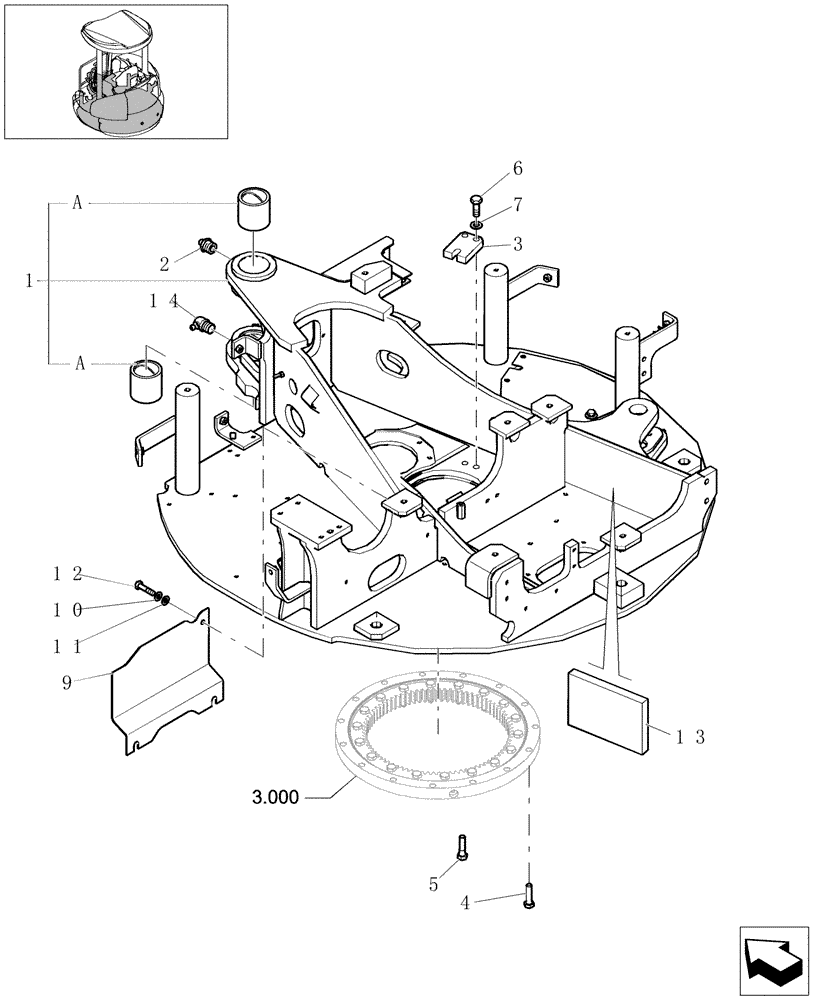

Запчасти Case CX31B (1.000[01]) - UPPER FRAME (39) - FRAMES AND BALLASTING

1

72171395

FRAME

1шт.

Up To S/N N6GN04015

1шт.

1

87571469

FRAME

1шт.

From S/N N6GN04016

1шт.

1a

72170267

BUSHING

2шт.

2

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

3

72170319

PLATE

1шт.

4

11113634

SCREW

TE M12x70

15шт.

5

72170429

SCREW

1шт.

6

11112834

BOLT,Hex, M12 x 40mm, Cl 10.9, Full Thd

2шт.

7

13550521

WASHER,12.2mm ID x 24mm OD x 3mm Thk

Ø12

2шт.

9

72170320

PLATE

1шт.

10

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

13

72170322

FOAM INSULATION

1шт.

14

13407211

LUBE NIPPLE,M10 x 1

1шт.

100

14560287

CABLE TIE,207.00mm L

COLLAR

9шт.

From S/N N6GN04016

1шт.

200

14560187

COLLAR,199mm L

5шт.

From S/N N6GN04016

1шт.
