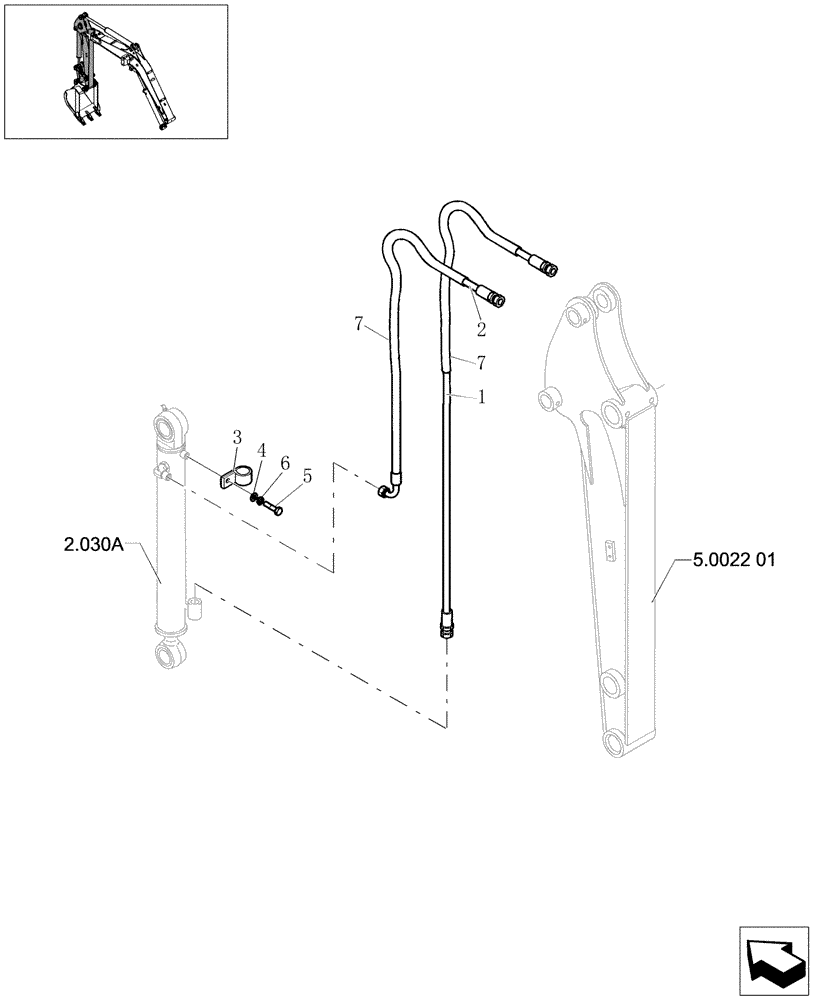

Запчасти Case CX31B (5.0022[02A]) - ARM LINES - STD - 747322070 (35) - HYDRAULIC SYSTEMS

1

87376218

FLEXIBLE HOSE,9.5mm ID x 1310mm L

1шт.

2

87572095

FLEXIBLE HOSE

1шт.

3

71405773

CLAMP

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

6

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

87572096

GUIDE

2шт.
