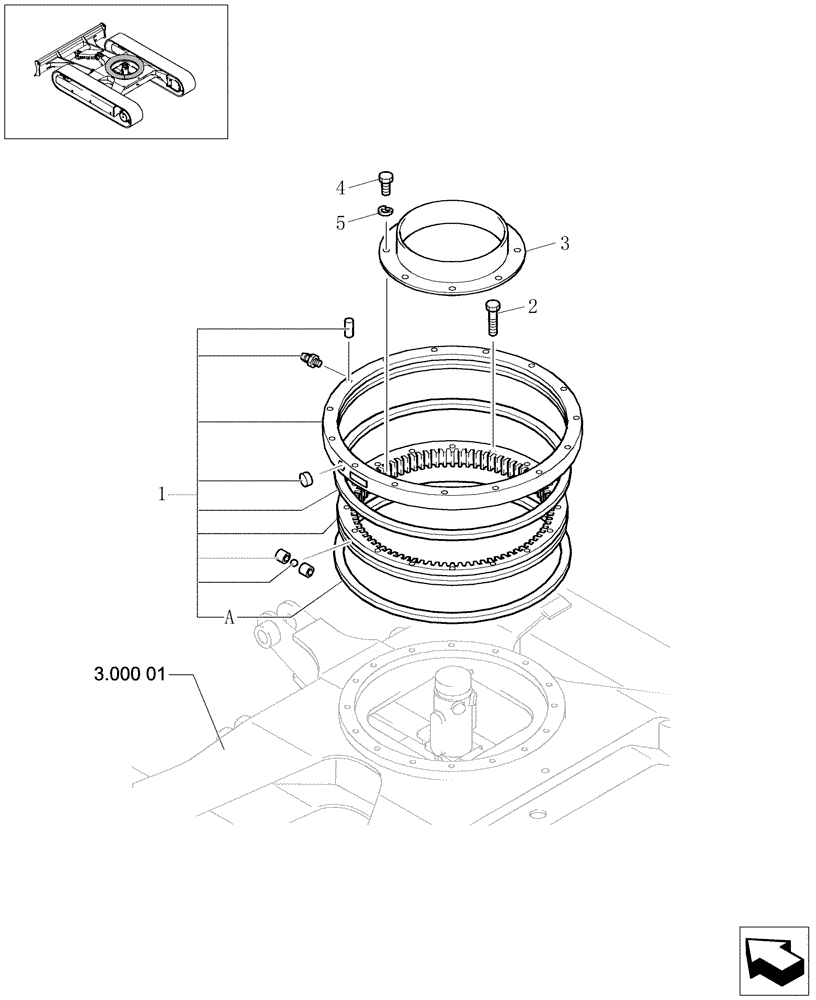

Запчасти Case CX31B (3.000[02]) - LOWER FRAME - RING SLEWING (35) - HYDRAULIC SYSTEMS

1

72281139

SLEWING RING

1шт.

1a

72281140

SEAL

1шт.

2

15215934

SCREW,M12 x 65mm, Cl 10.9

TE M12x65

16шт.

3

87572110

RING

1шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

5

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

M8

8шт.
