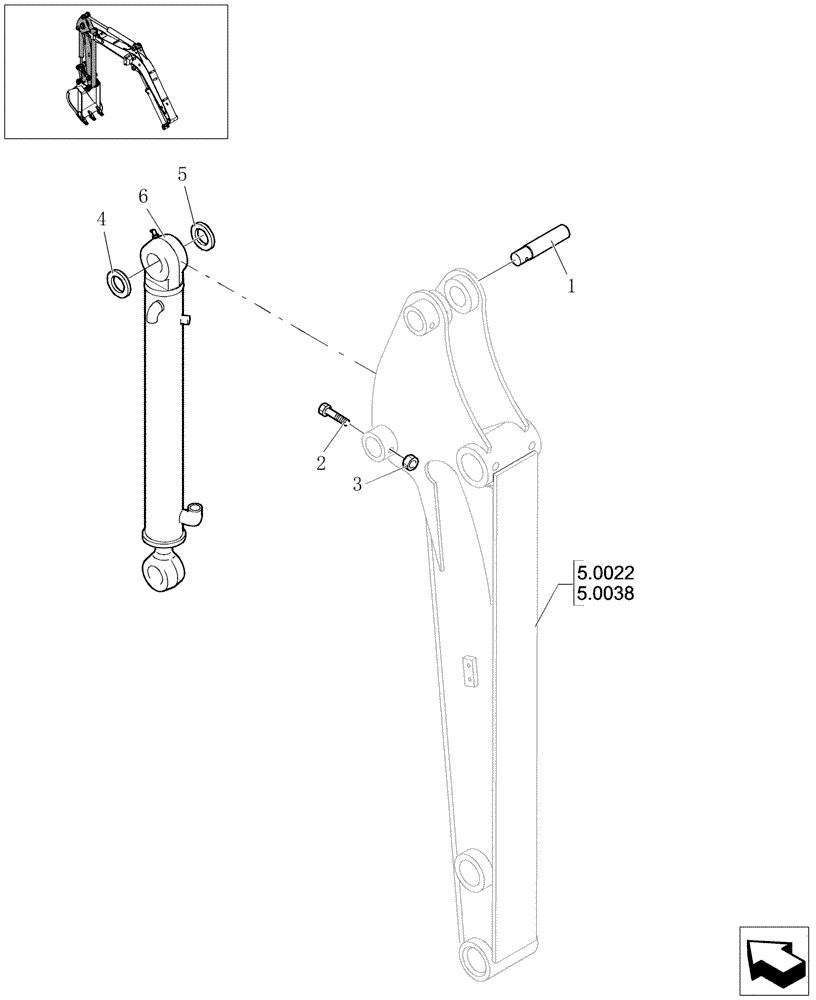

Запчасти Case CX31B (2.030[01]) - BUCKET CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

72282040

PIN

1шт.

2

11107834

SCREW

TE M10x80

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

4

72288928

SHIM,42mm ID x 65mm OD x 0.50mm Thk

1шт.

5

72281403

SHIM,42mm ID x 65mm OD x 0.90mm Thk

1шт.

6

72285850

HYDRAULIC CYLINDER

1шт.

See Page 2.030A

1шт.

Up To S/N N7GN05368

1шт.

6

87573321

HYDRAULIC CYLINDER

1шт.

See Page 2.030A

1шт.

From S/N N7GN05369

1шт.
