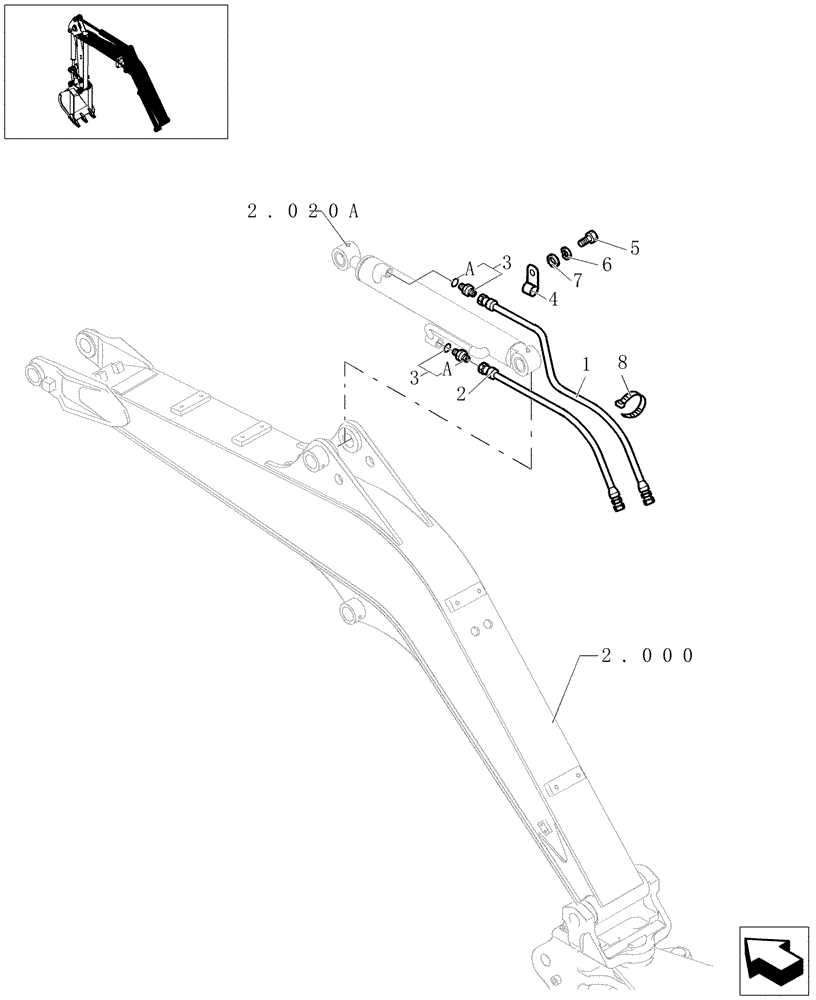

Запчасти Case CX31B (2.020[02]) - ARM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

72282656

HOSE,9.50 mm ID x 1280.00 mm

1шт.

2

72282658

SET OF PARTS

1шт.

3

72282154

HYD CONNECTOR

2шт.

3a

72283052

O-RING

2шт.

4

71405772

RETAINER COLLAR

1шт.

5

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

6

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

8

4982514

CABLE TIE,188mm L

CABLE STRAP

1шт.
