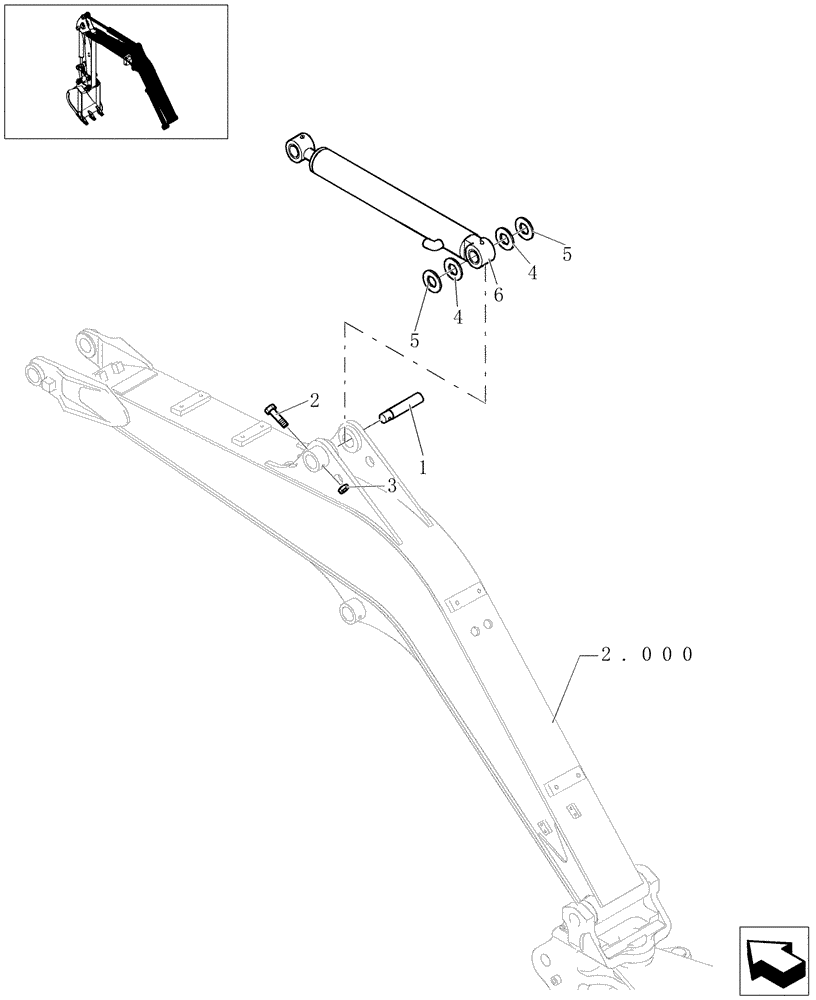

Запчасти Case CX31B (2.020[01]) - ARM CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

72281950

PIN

1шт.

2

11107934

SCREW

TE M10x85

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

4

72288976

SHIM,47mm ID x 70mm OD x 0.50mm Thk

1шт.

5

72950990

SHIM,47mm ID x 70mm OD x 0.90mm Thk

2шт.

6

72286386

CYLINDER ASSY.

ARM

1шт.

See Page 2.020A

1шт.

Up To S/N N7GN05198

1шт.

6

87571805

CYLINDER ASSY.

1шт.

From S/N N7GN05199

1шт.

See Page 2.020A

1шт.
