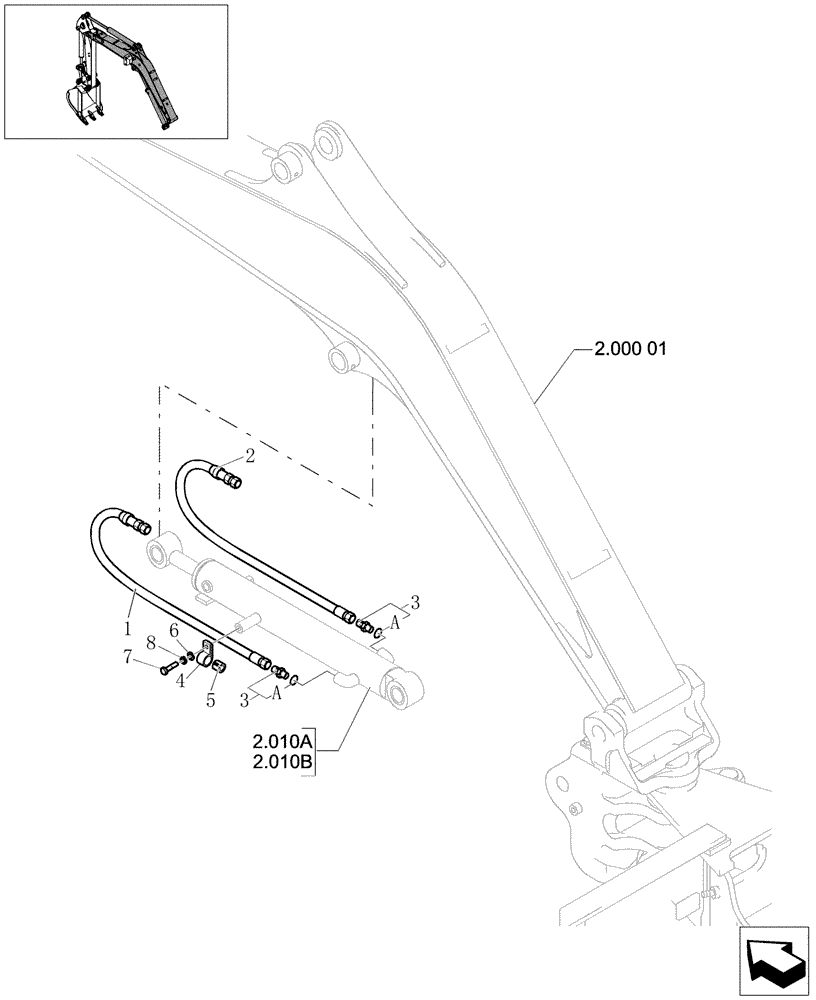

Запчасти Case CX31B (2.010[03A]) - BOOM CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

72282660

HOSE,9.50 mm ID x 770.00 mm

2шт.

2

87566919

FLEXIBLE HOSE

1шт.

3

72282154

HYD CONNECTOR

2шт.

3a

72283052

O-RING

2шт.

4

71405770

CLAMP,25mm ID, 15mm Bolt Hole, P Type

1шт.

5

87566921

BUSHING

1шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.
