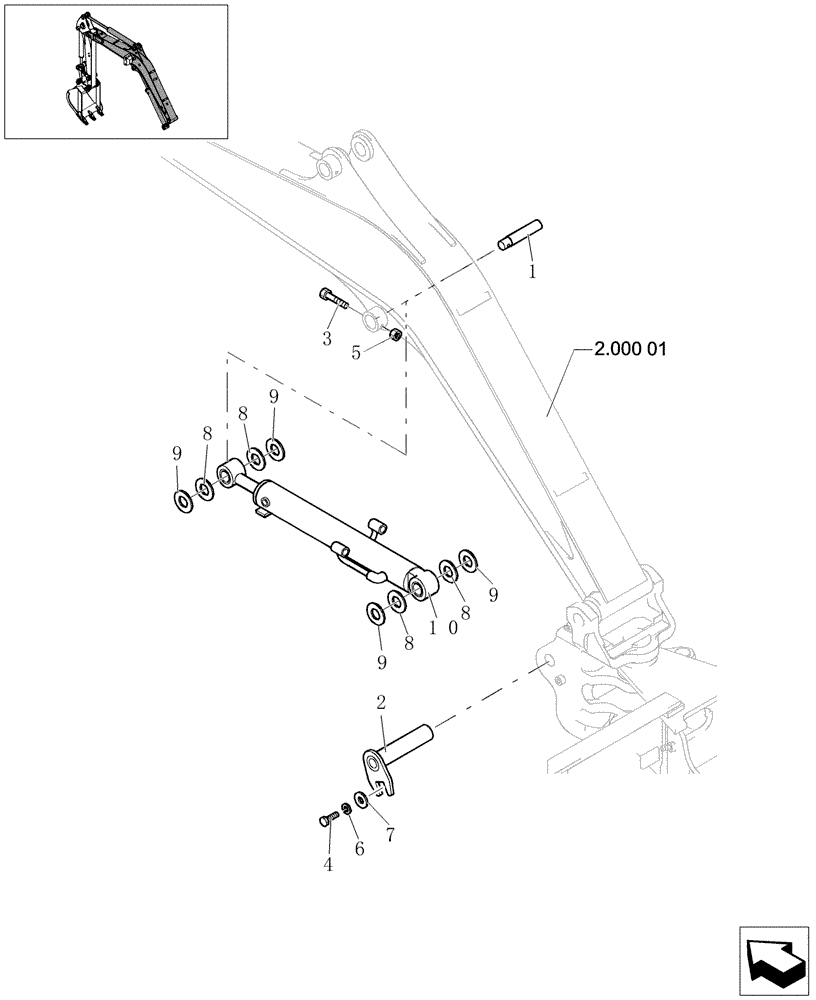

Запчасти Case CX31B (2.010[02]) - BOOM CYLINDER ASSEMBLY (CANOPY) (35) - HYDRAULIC SYSTEMS

1

72281950

PIN

1шт.

2

87378751

PIN

1шт.

3

11107934

SCREW

TE M10x85

1шт.

4

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

6

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

7

72950364

WASHER

Ø10

1шт.

8

72288976

SHIM,47mm ID x 70mm OD x 0.50mm Thk

2шт.

9

72950990

SHIM,47mm ID x 70mm OD x 0.90mm Thk

3шт.

10

72286375

HYDRAULIC CYLINDER

BOOM

1шт.

See Page 2.010B

1шт.
