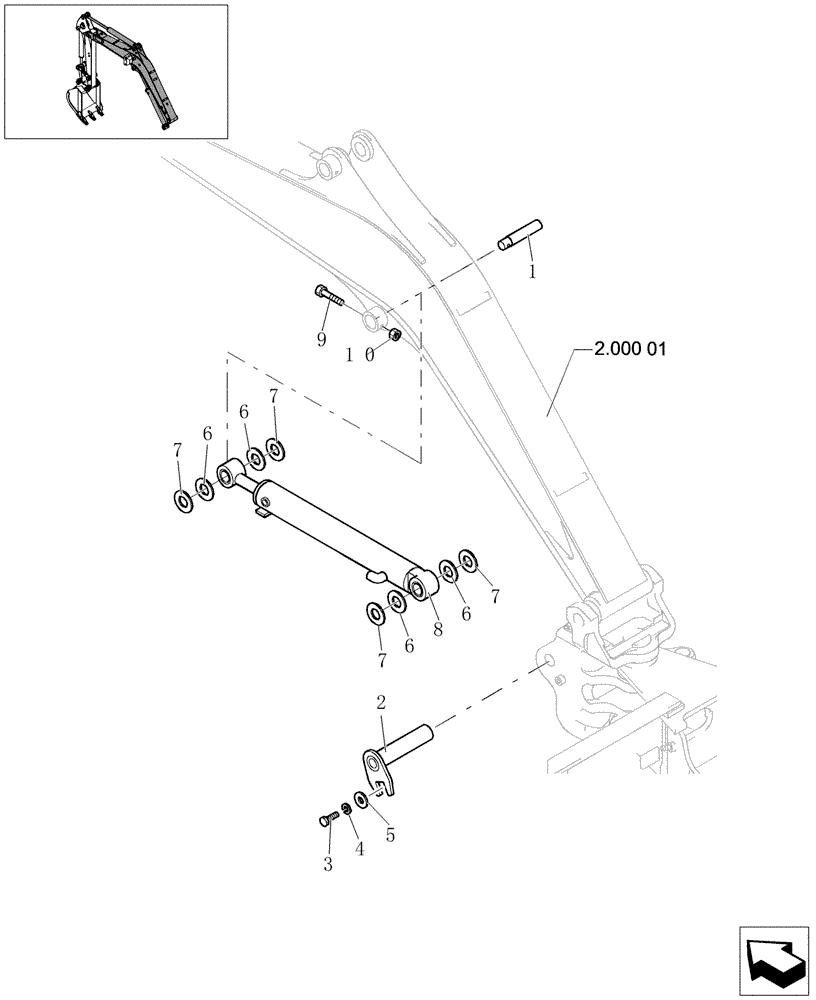

Запчасти Case CX31B (2.010[01A]) - BOOM CYLINDER ASSEMBLY (CAB) - DUMPING HEIGHT (35) - HYDRAULIC SYSTEMS

1

72281950

PIN

1шт.

2

87566621

PIN,45mm OD x 187mm L

1шт.

3

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

TE M10x85

1шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

5

72950364

WASHER

1шт.

6

72288976

SHIM,47mm ID x 70mm OD x 0.50mm Thk

2шт.

7

72950990

SHIM,47mm ID x 70mm OD x 0.90mm Thk

Ø10

3шт.

8

87639694

CYLINDER

1шт.

See Page 2.010A

1шт.

9

11107934

SCREW

1шт.

10

11701621

NUT,M8, Cl 10

1шт.
