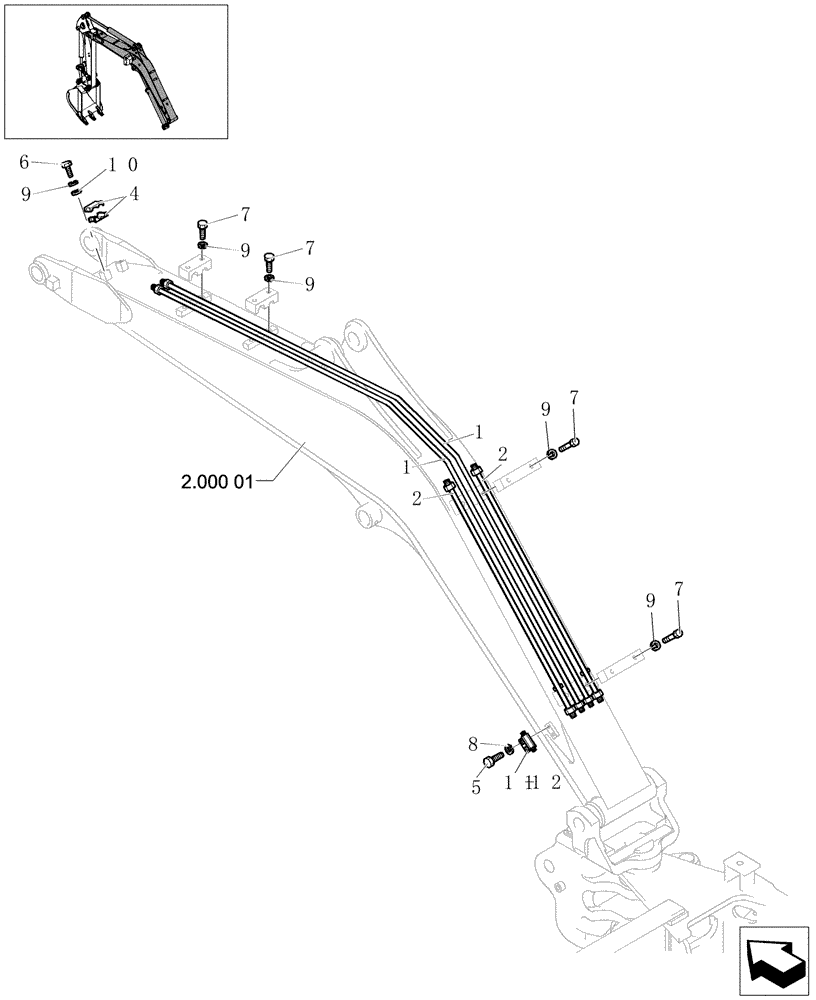

Запчасти Case CX31B (2.000[04]) - LINES BOOM - STD (35) - HYDRAULIC SYSTEMS

1

87368329

PIPE

2шт.

2

87368332

PIPE

2шт.

4

72283692

RUBBER

2шт.

5

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

6

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

7

11106834

SCREW

TE M10x40

8шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

9

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

10шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

11

72283885

HYD CONNECTOR

1шт.

Up To S/N N7GN05456

1шт.

11

87570996

HYD CONNECTOR

2шт.

From S/N N7GN05457

1шт.

12

72283886

HYD CONNECTOR

1шт.

Up To S/N N7GN05456

1шт.
