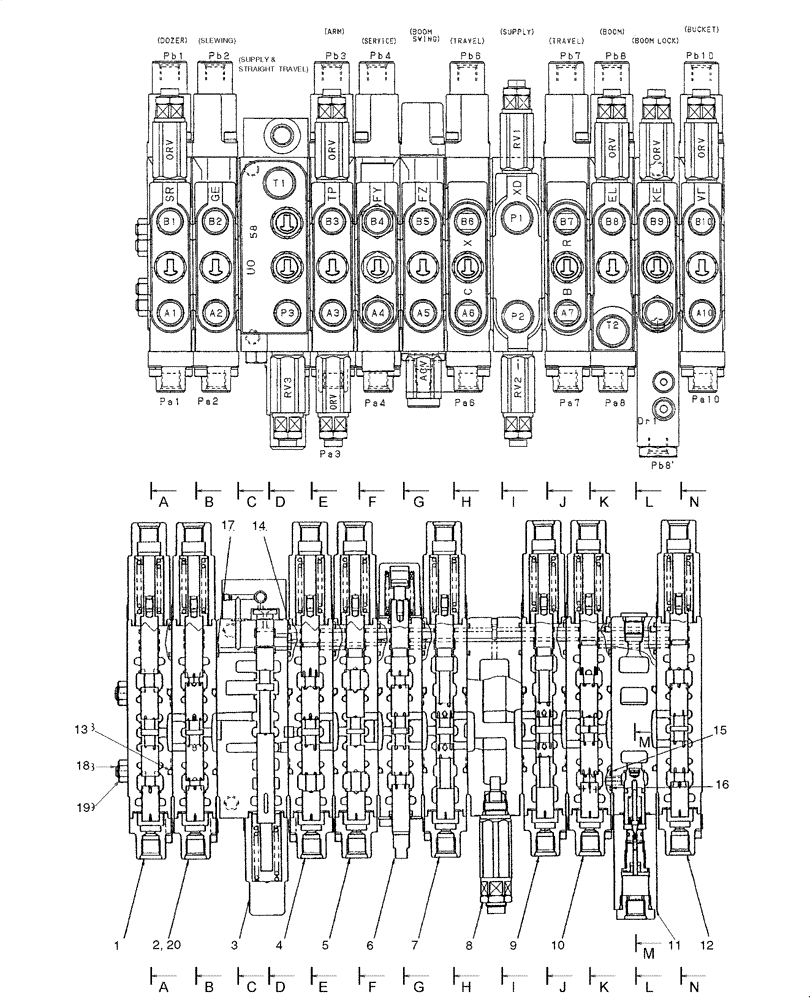

Запчасти Case CX31B (HC001-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS

1/20

72283613

CONTROL VALVE

1шт.

1

72280101

VALVE

- ASSY SEE HC002

1шт.

3

72280103

VALVE

- ASSY SEE HC004

1шт.

4

72280104

VALVE

- ASSY SEE HC005

1шт.

5

72280105

VALVE

- ASSY SEE HC006

1шт.

6

72280106

VALVE

- ASSY SEE HC007

1шт.

7

72280107

VALVE

- ASSY SEE HC008

1шт.

8

72280108

VALVE

- ASSY SEE HC009

1шт.

9

72280109

VALVE

- ASSY SEE HC010

1шт.

10

72280110

VALVE

- ASSY SEE HC011

1шт.

11

72957795

VALVE

- ASSY SEE HC012

1шт.

12

72280111

VALVE

- ASSY SEE HC013

1шт.

13

72957696

O-RING

11шт.

14

72957830

O-RING

10шт.

15

72957116

O-RING

1шт.

16

72209826

O-RING

1шт.

17

72957829

O-RING

1шт.

18

72280112

BOLT

4шт.

19

72210038

NUT

4шт.

20

72284889

VALVE

- ASSY SEE HC003

1шт.
