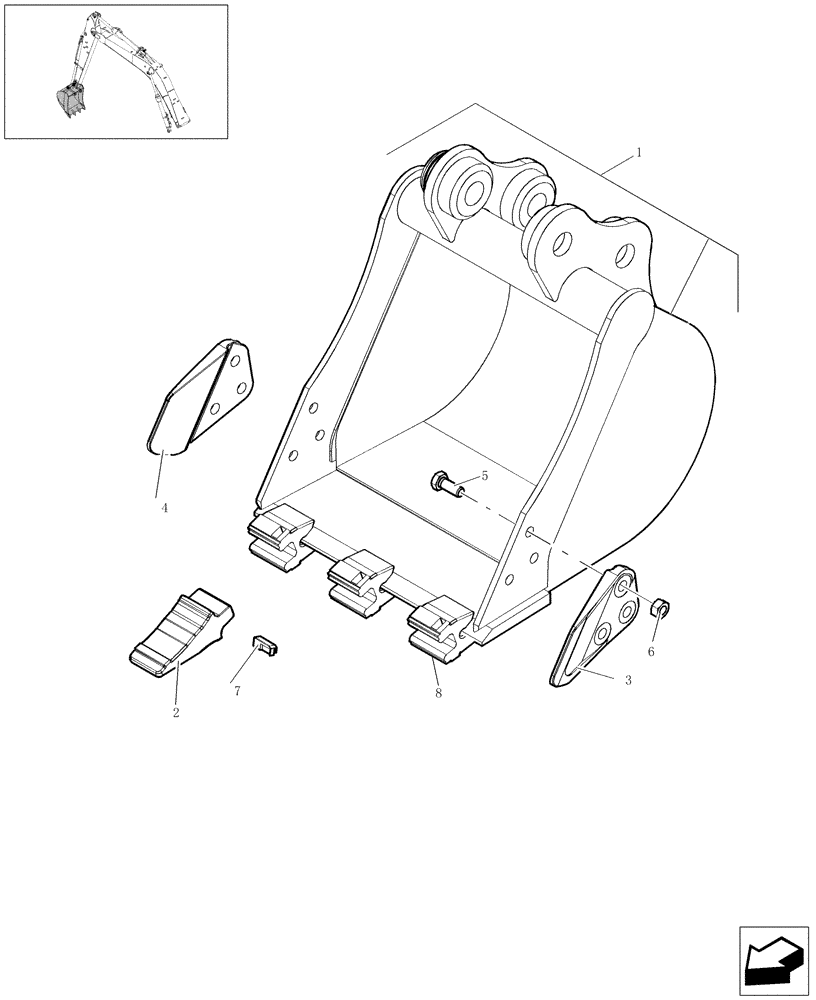

Запчасти Case CX31B (674-01[1]) - BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

72274731

BUCKET

- ASSY (2/8) L=300

1шт.

1

72274138

BUCKET

- ASSY (2/8) L=350

1шт.

1

72274139

BUCKET

- ASSY (2/8) L=450

1шт.

1

72274140

BUCKET

- ASSY (2/8) L=500

1шт.

1

72274141

BUCKET

- ASSY (2/8) L=600

1шт.

1

72274142

BUCKET

- ASSY (2/8) L=700

1шт.

1

72274732

BUCKET

- ASSY (2/8) L=800

1шт.

2

72274032

BUCKET TOOTH

1шт.

3

72270910

SIDE PLATE

1шт.

4

72270909

SIDE PLATE

1шт.

5

11112434

BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd

6шт.

6

11702924

NUT

12

6шт.

7

72274034

KEY

1шт.

8

72274033

BUCKET TOOTH SHANK

1шт.
