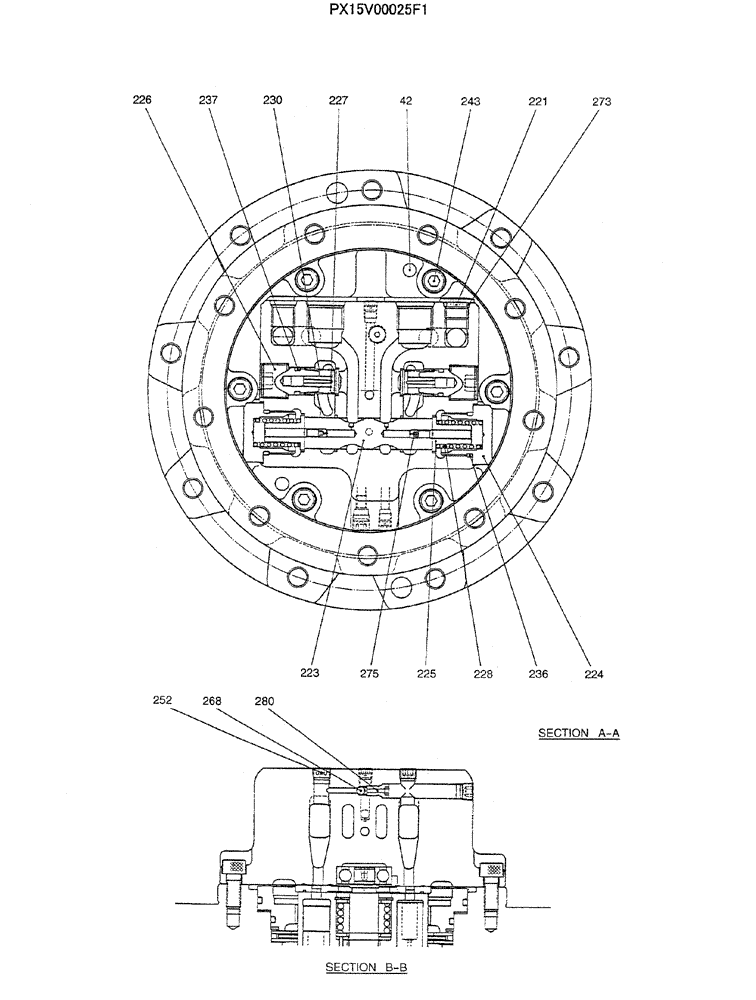

Запчасти Case CX31B (07-021) - MOTOR ASSY (PROPELLING) (35) - HYDRAULIC SYSTEMS

42

PY15V00006S142

PIN

2шт.

221

2441U995S192

PLUG

1шт.

223

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

224

PH15V00009S224

PLUG

2шт.

225

PH15V00009S225

SEAT

STOP

2шт.

226

2441U831S126

PLUG

2шт.

227

2441U831S127

VALVE

CHECK

2шт.

228

PH15V00009S228

SPRING

2шт.

230

2441U831S130

SPRING

2шт.

236

ZD12P02200

O-RING

2шт.

237

ZD12P01200

O-RING

2шт.

243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

CAP

6шт.

252

YX15V00003S146

PLUG

3шт.

268

PH15V00009S268

BALL

1шт.

273

ZD12P01100

O-RING

1шт.

275

PH15V00009S275

ORIFICE

2шт.

280

PH15V00009S280

PLUG

1шт.

PX15V00025R100

REPAIR KIT

CONSISTS OF REF. 31(1)

1шт.

PX15V00025R200

REPAIR KIT

CONSISTS OF REF. 104(1), 105(7), 106(7)

1шт.

PX15V00025R300

REPAIR KIT

CONSISTS OF REF. 161(1), 162(1), 163(1)

1шт.

PX15V00025R400

REPAIR KIT

CONSISTS OF REF. 54(7), 201(1), 221(2), 223(1), 224(2), 225(2), 226(2), 227(3), 228(2), 230(2), 236(2), 237(2), 252(4), 263(1), 264(1), 266(1), 268(1), 273(2), 275(4), 279(1), 280(1), 299(1)

1шт.

PX15V00025R500

REPAIR KIT

CONSISTS OF REF. 201(1), 223(1)

1шт.

PH15V00009R410

REPAIR KIT

CONSISTS OF REF. 263(1), 264(1)

1шт.

PX15V00025R700

REPAIR KIT

CONSISTS OF REF. 31(2), 35(1), 37(3), 43(2), 44(1), 132(1), 135(1), 139(1), 236(2), 237(2), 273(2)

1шт.
