(07-009) - VALVE ASSY, CONTROL (TRAVEL RIGHT)

Запчасти Case CX31B (07-009) - VALVE ASSY, CONTROL (TRAVEL RIGHT) (35) - HYDRAULIC SYSTEMS

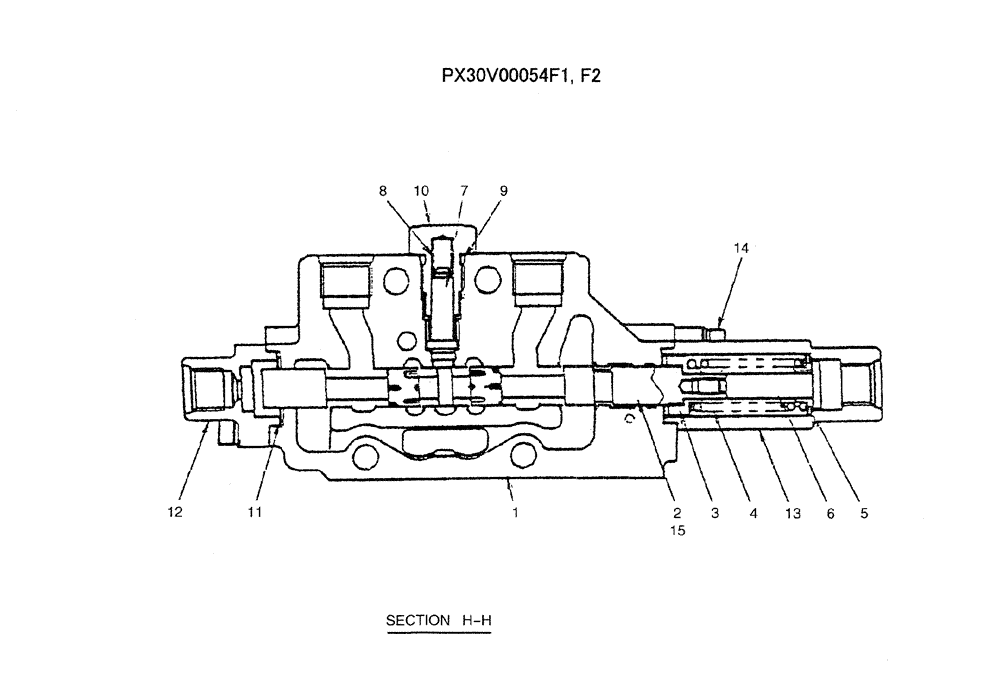

Схема запчастей Case CX31B - (07-009) - VALVE ASSY, CONTROL (TRAVEL RIGHT) (35) - HYDRAULIC SYSTEMS
13
15
11
10
3
7
14
1
6
4
2
9
8
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00054F1

VALVE SECTION

ASSY, CONTROL

1шт.

PX30V00054F2

VALVE SECTION

ASSY, CONTROL

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, (F1 ONLY)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

7

PW30V01009S002

POPPET

1шт.

8

PH30V00014S013

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PW30V01009S005

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

CAPSCREW

4шт.

15

NSS

NOT SOLD SEPARAT

SPOOL, (F2 ONLY)

1шт.

PX30V00054R100

REPAIR KIT

CONSISTS OF REF. (F1 ONLY), 2(1), 3(1), 4(1), 5(1), 6(1)

1шт.

PX30V00054R200

REPAIR KIT

CONSISTS OF REF. (F2 ONLY), 3(1), 4(1), 5(1), 6(1), 15(1)

1шт.
