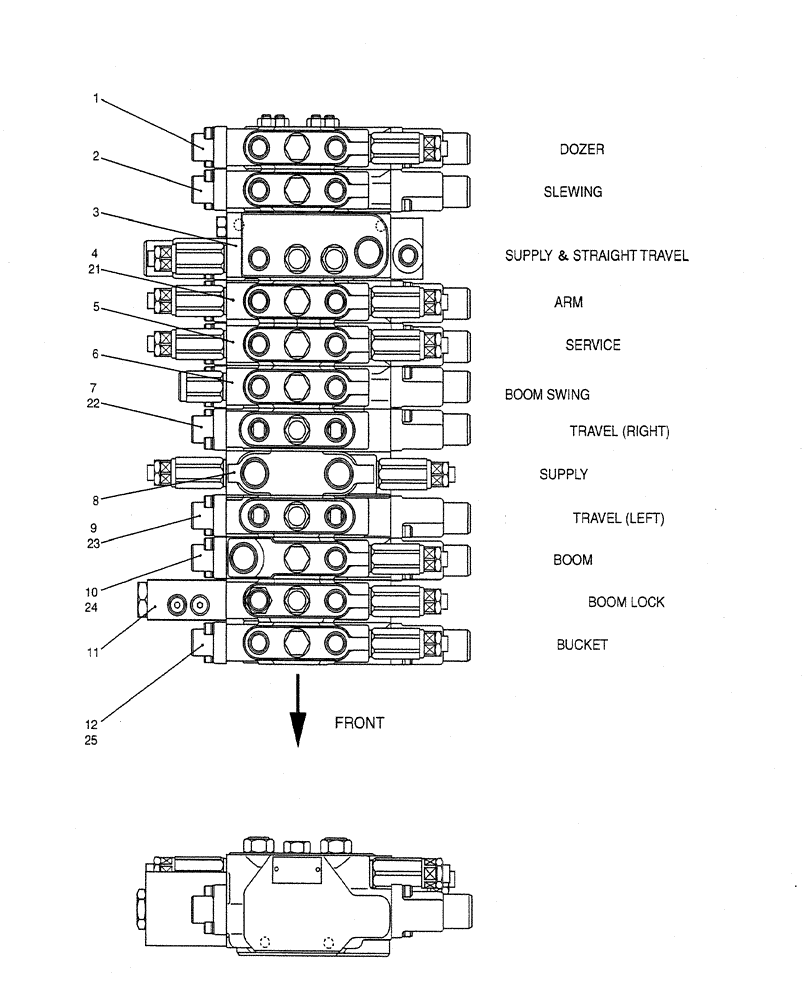

Запчасти Case CX31B (07-001) - VALVE ASSY, CONTROL (PX30V00059F1, F2) (35) - HYDRAULIC SYSTEMS

PX30V00059F1

CONTROL VALVE

ASSY, CONTROL

1шт.

PX30V00059F2

CONTROL VALVE

ASSY, CONTROL

1шт.

1

PX30V00048F1

VALVE SECTION

ASSY, CONTROL (DOZER)

1шт.

2

PX30V00049F2

VALVE SECTION

ASSY, CONTROL (SLEWING)

1шт.

SEE (HC003)

1шт.

3

PX30V00050F1

VALVE SECTION

ASSY, CONTROL (SUPPLY & STRAIGHT TRAVEL)

1шт.

SEE (HC004)

1шт.

4

PX30V00051F1

VALVE SECTION

ASSY, CONTROL (ARM), (F1 ONLY)

1шт.

SEE (HC005)

1шт.

5

PX30V00064F1

VALVE SECTION

ASSY, CONTROL (SERVICE)

1шт.

SEE (HC006)

1шт.

6

PX30V00065F1

VALVE SECTION

ASSY, CONTROL (BOOM SWING)

1шт.

SEE (HC007)

1шт.

7

PX30V00054F1

VALVE SECTION

ASSY, CONTROL (TRAVEL RIGHT), (F1 ONLY)

1шт.

SEE (HC008)

1шт.

8

PX30V00055F1

VALVE SECTION

ASSY, CONTROL (SUPPLY)

1шт.

SEE (HC009)

1шт.

9

PX30V00056F1

VALVE SECTION

ASSY, CONTROL (TRAVEL LEFT) (F1 ONLY)

1шт.

SEE (HC010)

1шт.

10

PX30V00057F1

VALVE SECTION

ASSY, CONTROL (BOOM) (F1 ONLY)

1шт.

SEE (HC011)

1шт.

11

PM30V00048F1

VALVE SECTION

ASSY, CONTROL (BOOM LOCK)

1шт.

SEE (HC012)

1шт.

12

PX30V00058F1

VALVE SECTION

ASSY, CONTROL (BUCKET) (F1 ONLY)

1шт.

SEE (HC013)

1шт.

21

PX30V00051F2

VALVE SECTION

ASSY, CONTROL (ARM) (F2 ONLY)

1шт.

SEE (HC005)

1шт.

22

PX30V00054F2

VALVE SECTION

ASSY, CONTROL (TRAVEL RIGHT) (F2 ONLY)

1шт.

SEE (HC008)

1шт.

23

PX30V00056F2

VALVE SECTION

ASSY, CONTROL (TRAVEL LEFT) (F2 ONLY)

1шт.

SEE (HC010)

1шт.

24

PX30V00057F2

VALVE SECTION

ASSY, (BOOM) (F2 ONLY)

1шт.

SEE (HC011)

1шт.

25

PX30V00058F2

VALVE SECTION

ASSY, CONTROL (BUCKET) (F2 ONLY)

1шт.

SEE (HC013)

1шт.
