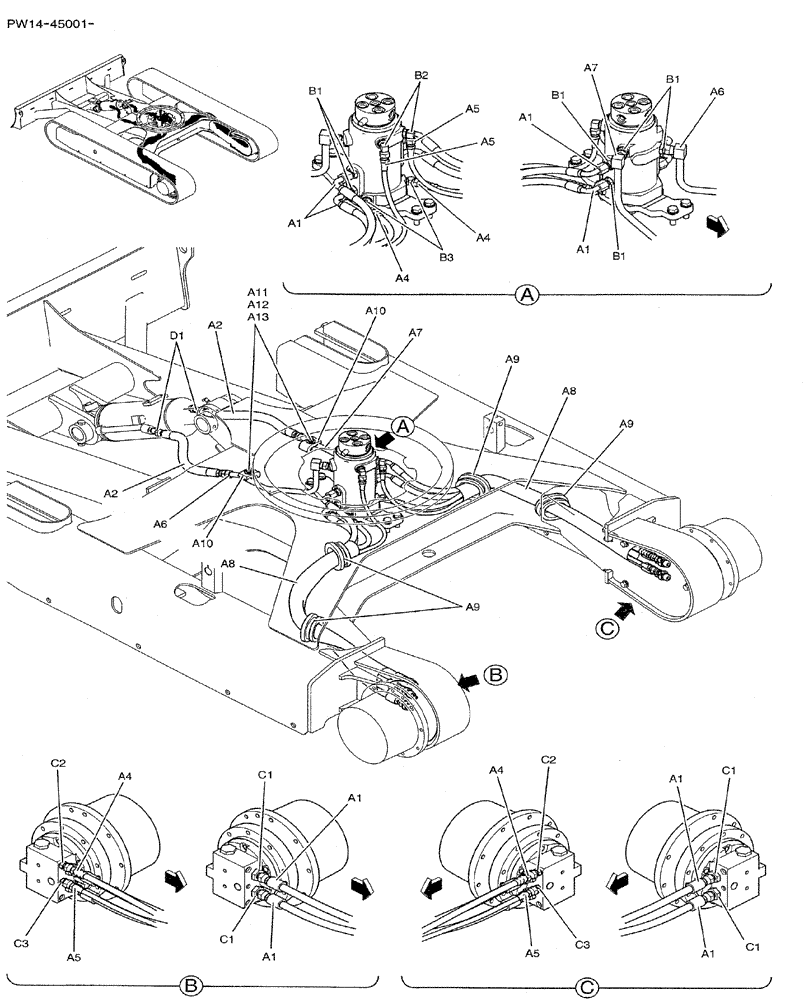

Запчасти Case CX31B (02-011) - HYD LINES, LOW (35) - HYDRAULIC SYSTEMS

PW02H00021F1

HYD LINES, LOW

1шт.

a1

PM02H01011D5

HOSE

4шт.

a2

PM02H01012DB

HOSE

2шт.

a4

HX23L04110DX

HOSE,6.3mm ID x 1100mm L

2шт.

a5

PW02H01014D3

HOSE

2шт.

a6

PX02H01002P1

TUBE

1шт.

a7

PX02H01003P1

TUBE

1шт.

a8

PW01P01003DF

HOSE

2шт.

a9

PX02H01001P1

GROMMET

4шт.

a10

PW02F01049P1

CLAMP

2шт.

a11

ZS18C08035

SCREW,Hex, M8 x 35mm

CAP

2шт.

a12

PV01P01007P1

WASHER

2шт.

a13

ZW26X08000

LOCK WASHER

Lock

2шт.

PW19H00012F1

HYD LINES, SWIVEL

1шт.

b1

HH25S06006G1

HYD CONNECTOR

6шт.

b2

HH35S04004G1

90 ELBOW

2шт.

b3

HH45S04004G1

45 ELBOW

2шт.

PW12H00002F1

HYD LINES, PROPEL

1шт.

c1

HH25S06008G1

HYD CONNECTOR

4шт.

c2

HH25S04004G1

HYD CONNECTOR

2шт.

c3

HH25S04002G2

HYD CONNECTOR

2шт.

PW13H00001F1

HYD LINES, CYLINDER (D0ZER)

1шт.

d1

HH25S06006G1

HYD CONNECTOR

2шт.
