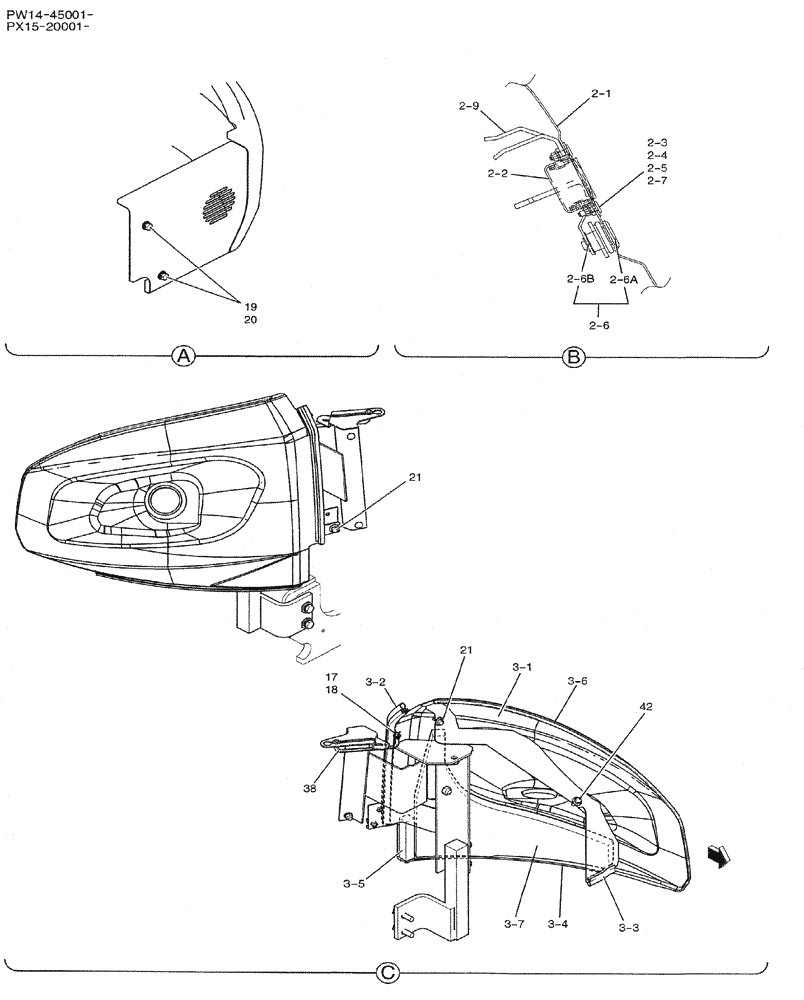

Запчасти Case CX31B (01-062) - GUARD INSTAL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

2-2

PW22C01067P1

LOCK

1шт.

2-3

PH22C01023P1

BOLT

4шт.

2-4

ZN18C05004

NUT

4шт.

2-5

ZW26X05000

LOCK WASHER

LOCK

4шт.

2-6

PM21C01268F1

LOCK

1шт.

2-6a

YR22C01025P2

LOCK

1шт.

2-6b

PM21C01269P1

PLATE

1шт.

2-7

ZW16H05000

WASHER

4шт.

2-9

PW22C01160P3

BRACKET

1шт.

3-1

PW21C01657P1

COVER

(Primer Colored)

1шт.

3-2

YZ21C01094D8

WEATHERSTRIP

1шт.

3-3

PM21C01152DR

WEATHERSTRIP

1шт.

3-4

PM21C01091DK

WEATHERSTRIP

1шт.

3-5

PW21C01718D1

RUBBER

1шт.

3-6

PE21C01135D3

TRIM PANEL

1шт.

3-7

PW21C01821P1

FOAM INSULATION

1шт.

17

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

18

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

19

PA41C01005D3

BOLT

SEMS

2шт.

20

YT21G01187P2

2шт.

21

PA21C01133P1

BOLT

SEMS

2шт.

38

PW22C01173P2

STAY

STAY

1шт.

42

PM21C01142P1

BOLT

SEMS

1шт.
