(01-005) - ENGINE ASSY

Запчасти Case CX31B (01-005) - ENGINE ASSY (10) - ENGINE

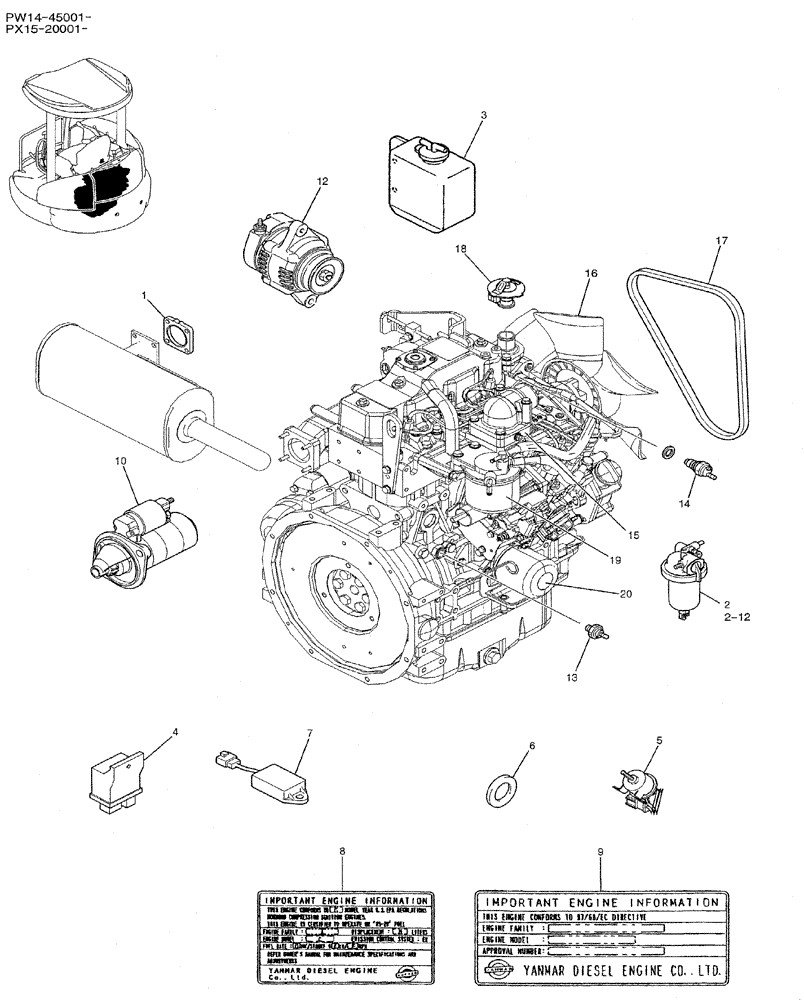

Схема запчастей Case CX31B - (01-005) - ENGINE ASSY (10) - ENGINE
3
20
9
8
7
6
4
16
5
14
2
1
13
10
12
19
2-12
17
15
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02P00018F1

ENGINE

ASSY

1шт.

1

PW12P01043P1

GASKET

1шт.

2

PW02P01046P1

SEPARATOR

ASSY, WATER

1шт.

3

PU01P01024F1

RESERVOIR

ASSY, WATER, SUB

1шт.

4

PX24S00001P1

RELAY

1шт.

5

PW22P00001P1

FUEL PUMP

FUEL

1шт.

6

PA13E01027P1

PACKING

PACKING

1шт.

7

PH25S00002P1

TIMER

TIMER

1шт.

8

PY20T01087P1

LABEL

1шт.

9

PX20T01008P1

DECAL

1шт.

1

VV12900413200

GASKET

As for the engine parts, refer to following "Engine Parts"

1шт.

2

VV11980255700

SEPARATOR

ASSY, WATER, As for the engine parts, refer to following "Engine Parts"

1шт.

2-12

VV11980255710

FILTER STRAINER

WATER SEPARATOR, As for the engine parts, refer to following "Engine Parts"

1шт.

3

VV12146844510

TANK

ASSY, WATER, SUB,As for the engine parts, refer to following "Engine Parts"

1шт.

4

VV11980277200

RELAY

1шт.

5

VV12961252100

FUEL PUMP,12V, 1.5A

FUEL, As for the engine parts, refer to following "Engine Parts"

1шт.

6

VV12915049360

PACKING

PACKING, As for the engine parts, refer to following "Engine Parts"

1шт.

7

VV12921177920

TIMER

TIMER, As for the engine parts, refer to following "Engine Parts"

1шт.

10

VV12924277010

STARTER MOTOR

ASSY, As for the engine parts, refer to following "Engine Parts"

1шт.

12

VV11962677210

ALTERNATOR,12V, 55 Amp

DYNAMO, As for the engine parts, refer to following "Engine Parts"

1шт.

13

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

PRESS, OIL, As for the engine parts, refer to following "Engine Parts"

1шт.

14

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

THERMO, As for the engine parts, refer to following "Engine Parts"

1шт.

15

VV12910077500

HEATER

AIR, As for the engine parts, refer to following "Engine Parts"

1шт.

16

VV17134044740

FAN

As for the engine parts, refer to following "Engine Parts"

1шт.

17

VV12961242330

V-BELT

V, As for the engine parts, refer to following "Engine Parts"

1шт.

18

VV12915549801

THERMOSTAT

As for the engine parts, refer to following "Engine Parts"

1шт.

19

VV12900455800

FUEL FILTER

FUEL, As for the engine parts, refer to following "Engine Parts"

1шт.

20

VV12915035151

ENGINE OIL FILTER

OIL, As for the engine parts, refer to following "Engine Parts"

1шт.
