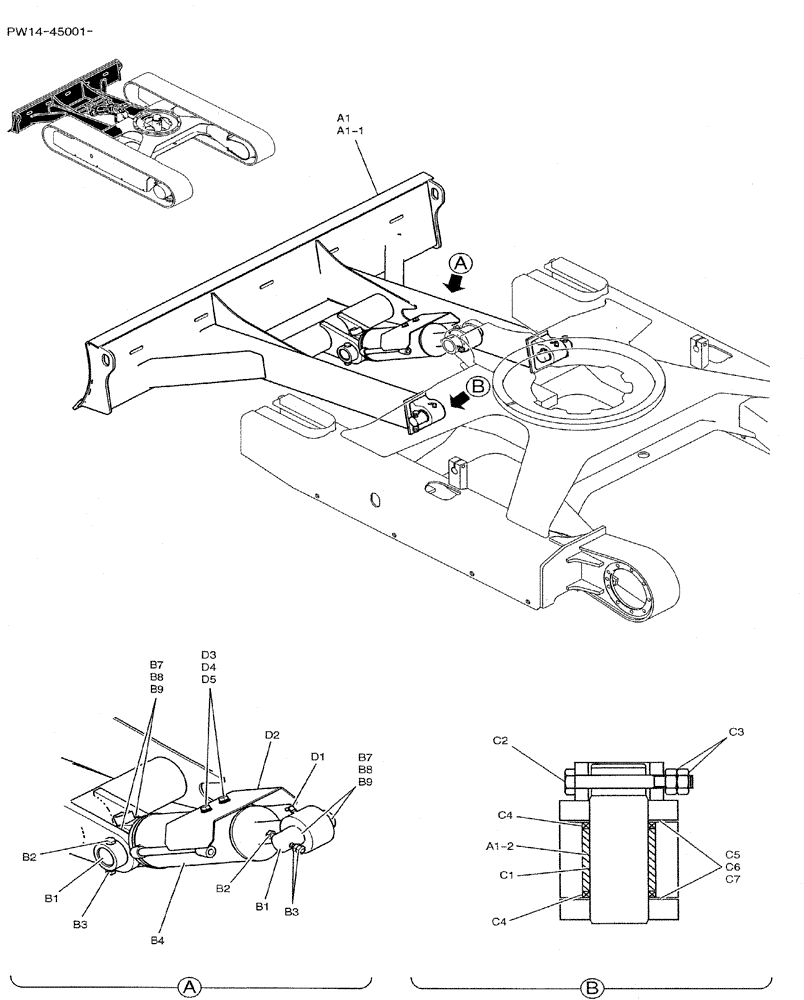

Запчасти Case CX31B (02-012) - DOZER ASSY (86) - DOZER

PW51B00082F1

DOZER

ASSY

1шт.

a1

PW51B00083F1

DOZER BLADE

ASSY

1шт.

a1-1

PW51B01207P1

CUTTING EDGE

1шт.

a1-2

PW51B01039P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

PX51B00071F1

INSTAL

1шт.

b1

PH12B01009P1

PIN,45mm OD x 137mm L

2шт.

b2

ZS18C10085

SCREW,Hex, M10 x 85mm

CAP

2шт.

b3

ZN18C10008

NUT

4шт.

b4

PX01V00043F2

CYLINDER

ASSY

1шт.

SEE (C.P.M.)

1шт.

b7

B16T0442D64

SHIM,70mm OD x 47mm ID x 1.2mm Thk

2шт.

b8

B16T0442D65

SHIM,70mm OD x 47mm ID x 1.6mm Thk

2шт.

b9

B16T0442D66

SHIM,70mm OD x 47mm ID x 2.3mm Thk

2шт.

PW51B00028F1

INSTAL

1шт.

g1

PW51B01028P1

PIN,40mm OD x 127mm L

2шт.

c2

ZS18C10080

SCREW,Hex, M10 x 80mm

CAP

2шт.

3

ZN18C10008

NUT

4шт.

c4

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

DUST

4шт.

c5

B16T0442D67

SHIM,65mm OD x 42mm ID x 1.2mm Thk

2шт.

g6

B16T0442D68

SHIM,65mm OD x 42mm ID x 1.6mm Thk

2шт.

c7

B16T0442D69

SHIM,65mm OD x 42mm ID x 2.3mm Thk

2шт.

PX51B00072F1

GROUP

1шт.

d1

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.

d2

PX51B01081P1

COVER

1шт.

d3

ZS18C10016

SCREW,Hex, M10 x 16mm

CAP

2шт.

d4

ZW16X10000

WASHER

2шт.

d5

ZW26X10000

LOCK WASHER

2шт.
