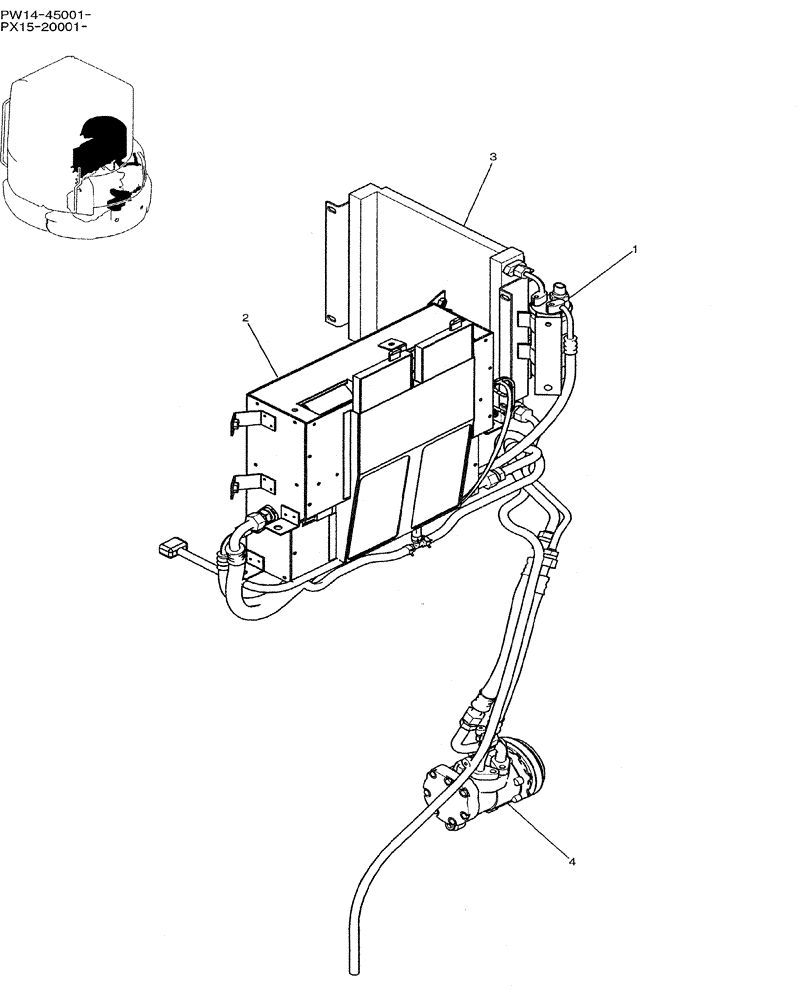

Запчасти Case CX31B (05-027) - COOLER ASSY, P/N PW20M00022F1 (50) - CAB CLIMATE CONTROL

.

ASSY PW20M00022F1

1шт.

1

NSS

NOT SOLD SEPARAT

ASSY, AIR DRYER PW96V00005F1, SEE FIG. 05-029

1шт.

2

PH20M00016F1

COOLER

ASSY, SEE FIG. 05-030

1шт.

3

PH20M01108F1

CONDENSER

ASSY

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

ASSY

1шт.
