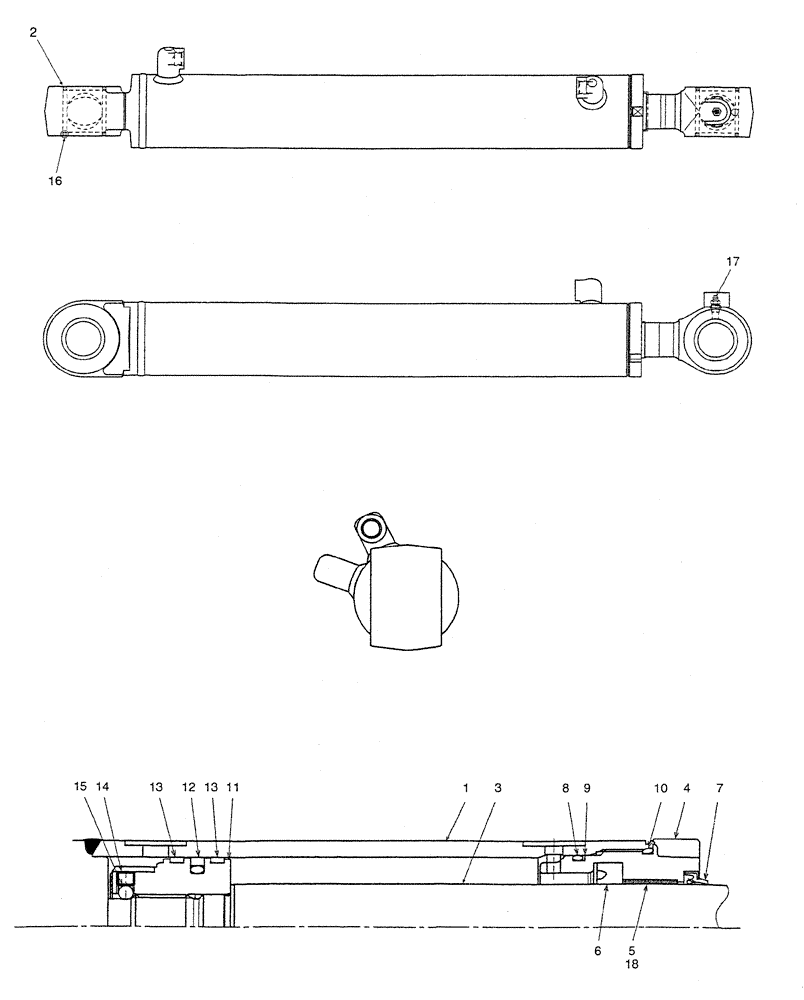

Запчасти Case CX31B (07-038) - CYLINDER ASSY, SWING (35) - HYDRAULIC SYSTEMS

PX01V00042F1

CYLINDER

ASSY, SWING

1шт.

PX01V00042F2

HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 488mm Stroke

ASSY, SWING

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER

1шт.

2

PX01V00042S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

ROD

1шт.

4

PX01V00042S004

CYLINDER HEAD

1шт.

5

2438U1169S4

BUSHING

(F1 ONLY)

1шт.

6

2438U635S3

RING

U

1шт.

7

PH01V00006S006

RING

1шт.

8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

9

PH01V00015S008

BACK-UP RING

1шт.

10

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11

PX01V00042S011

PISTON

1шт.

12

2438U852S15

RING

SEAL

1шт.

13

PH01V00015S017

RING

SLIDE

2шт.

14

2438U1057S16

SET SCREW

SETSCREW

1шт.

15

2436U946S11

BALL

1шт.

16

PR01V00002S027

SEAL

DUST

4шт.

17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

18

PV01V00047S019

BUSHING

BUSHING, FOR F2 ONLY

1шт.

PX01V00042R100

TUBE

CONSISTS OF REF. 1(1), 2(1), 16(2)

1шт.

PX01V00042R200

ROD

CONSISTS OF REF. 2(1), 3(1), 16(2)

1шт.

PX01V00042R300

SEAL

CONSISTS OF REF. 6(1), 7(1), 8(1), 9(1), 10(1), 12(1), 13(2)

1шт.
