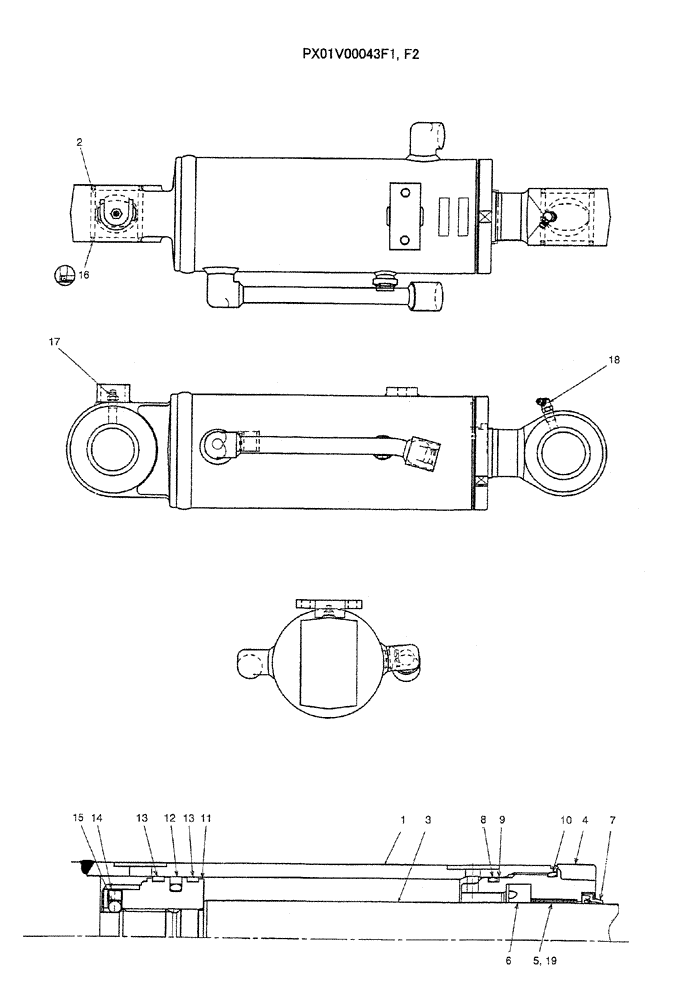

Запчасти Case CX31B (07-037) - CYLINDER ASSY, DOZER (35) - HYDRAULIC SYSTEMS

PX01V00043F1

CYLINDER

ASSY, DOZER

1шт.

PX01V00043F2

CYLINDER

ASSY, DOZER

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PX01V00043S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

4

PX01V00043S004

CYLINDER HEAD

1шт.

5

2438U1163S4

BUSHING

(F1 ONLY)

1шт.

6

2438U345S15

RING

U

1шт.

7

PH01V00011S006

GASKET

WIPER

1шт.

8

ZD12G09500

O-RING,3.1mm Thk x 94.4mm ID, 90 Duro

1шт.

9

PY01V00030S008

BACK-UP RING

1шт.

10

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

11

PX01V00043S011

PISTON

1шт.

12

2438U827S20

SEALING RING

SEALRING

1шт.

13

PY01V00030S017

RING

SLIDE

2шт.

14

2438U986S18

SET SCREW

SET

1шт.

15

2436U281S37

BALL

1шт.

16

PR01V00002S027

SEAL

DUST

4шт.

17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

GREASE

1шт.

18

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

GREASE

1шт.

19

PX01V00043S019

BUSHING

BUSHING, FOR F2 ONLY

1шт.

PX01V00043R100

TUBE

CONSISTS OF REF. 1(1), 2(1), 16(2)

1шт.

PX01V00043R200

ROD

CONSISTS OF REF. 2(1), 3(1), 16(2)

1шт.

PX01V00043R300

SEAL

CONSISTS OF REF. 6(1), 7(1), 8(1), 9(1), 10(1), 12(1), 13(2)

1шт.
