(07-035) - CYLINDER ASSY, ARM

Запчасти Case CX31B (07-035) - CYLINDER ASSY, ARM (35) - HYDRAULIC SYSTEMS

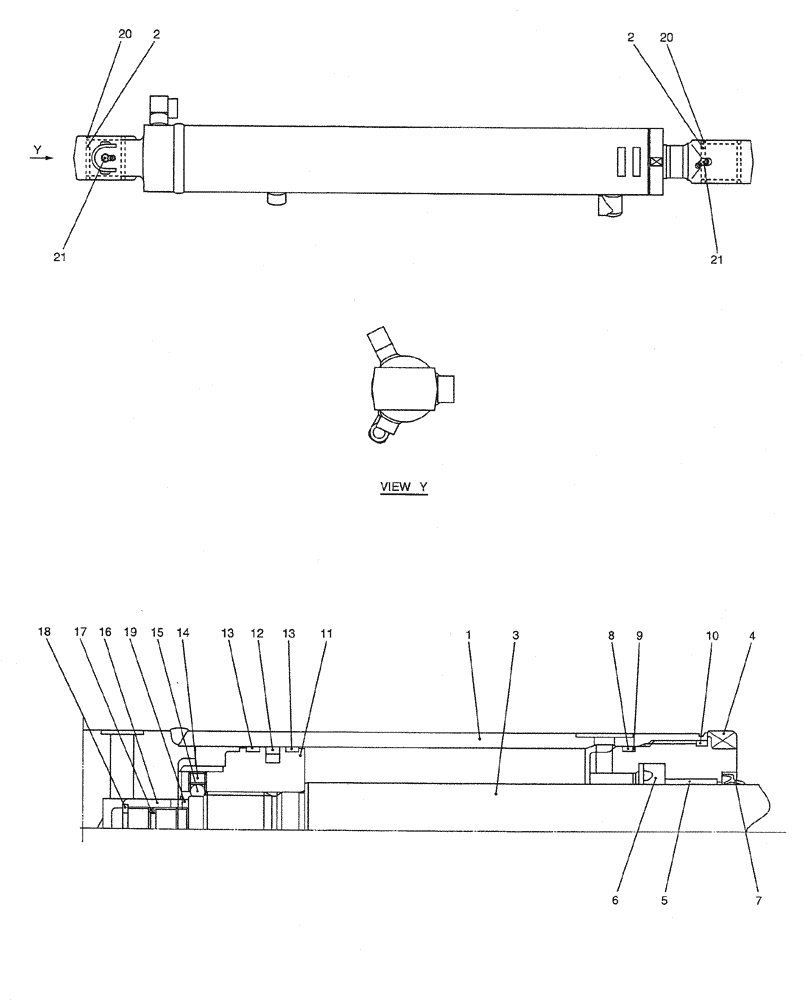

Схема запчастей Case CX31B - (07-035) - CYLINDER ASSY, ARM (35) - HYDRAULIC SYSTEMS
11
1
8
19
9
4
6
13
20
16
7
20
21
5
14
12
15
17
13
2
2
10
21
3
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW01V00070F1

CYLINDER

ASSY, ARM

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PW01V01086D1

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

4

PW01V00062S004

CYLINDER HEAD

1шт.

5

PV01V00047S019

BUSHING

1шт.

6

2438U635S3

RING

U

1шт.

7

PH01V00006S006

RING

RING

1шт.

8

ZD12G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

9

PH01V00016S008

BACK-UP RING

1шт.

10

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

11

PW01V00045S015

PISTON

1шт.

12

2438U816S19

RING

SEAL

1шт.

13

PW01V00070S013

RING

SLIDE

2шт.

14

2438U1057S16

SET SCREW

SETSCREW

1шт.

15

2436U946S11

BALL

1шт.

16

PX01V00048S016

CUSHION

BEARING

1шт.

17

YT01V00002S023

SEAL

RING

1шт.

18

2438U1116S24

STOP

2шт.

19

2438U1116S23

RING

RETAINING

1шт.

20

PR01V00002S027

SEAL

DUST

4шт.

21

ZG91U02000

LUBE NIPPLE

2шт.

PW01V00070R100

REPAIR KIT

CONSISTS OF REF., 1(1), 2(1), 26(1)

1шт.

PW01V00062R200

REPAIR KIT

CONSISTS OF REF., 2(1), 3(1), 26(2)

1шт.

PW01V00062R300

REPAIR KIT

CONSISTS OF REF., 6(1), 7(1), 8(1), 9(1), 10,(1), 12(1), 13(2)

1шт.
