(161-17[2]) - CONTROL LINES REMOTE

Запчасти Case CX31B (161-17[2]) - CONTROL LINES REMOTE (00) - GENERAL & PICTORIAL INDEX

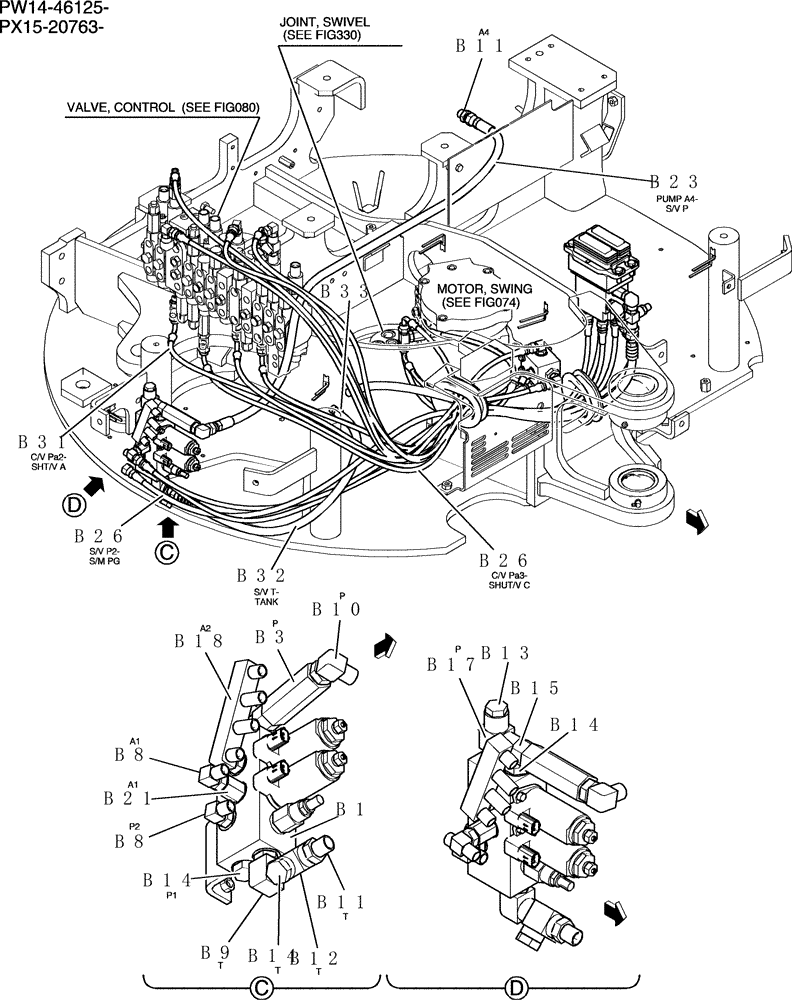

Схема запчастей Case CX31B - (161-17[2]) - CONTROL LINES REMOTE (00) - GENERAL & PICTORIAL INDEX
b14
b21
b3
b10
b23
b8
b12
b17
b1
b14
b11
b32
b14
b18
b26
b8
b31
b15
b26
b13
b11
b9
b33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW62H00021F1

Control , Propel

1шт.

a1

HH25S04004G1

HYD CONNECTOR

4шт.

a2

2444Z2525

HYD CONNECTOR

1шт.

a3

PH62H01003P1

ELBOW

1шт.

a4

HH35S04004G1

90 ELBOW

1шт.

a5

HX24L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

a6

PW68H01023DA

HOSE,9.5mm ID x 800mm L

1шт.

a7

HX33L03150DX

HOSE

1шт.

a8

HX33L31250DX

Hose

1шт.

a9

PW62H01001P1

GROMMET

2шт.

a10

PM30V00019F6

PILOT VALVE

1шт.

See(C.P.M)

1шт.

a11

ZS18C08025

SCREW,Hex, M8 x 25mm

Cap

4шт.

a12

PW62H01003P1

PLATE

2шт.

a13

ZC16X01800

CLIP

1шт.

a14

2444Z2894

90 ELBOW

Elbow

1шт.

a15

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a16

HX23L03160DX

HOSE

Hose

1шт.

a17

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

a18

HH25S06004G3

HYD CONNECTOR

1шт.

a19

HH55L04004G1

TEE

1шт.

PW64H00043F1

Control , Valve

1шт.

b1

PX35V00003F1

VALVE

Assy, Solenoid

1шт.

See(C.P.M)

1шт.

b2

PH26V00001F1

VALVE

Assy, Shuttle

1шт.

See(C.P.M)

1шт.

b3

YN50V00020F1

HYDRAULIC OIL FILTER

Filter Assy, Inline

1шт.

b4

PW64H01072P1

BRACKET

1шт.

b5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

b6

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

b7

ZW16H08000

WASHER

2шт.

b8

HH35S04004G1

90 ELBOW

4шт.

b9

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

b10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

b11

HH25S06006G1

HYD CONNECTOR

2шт.

b12

HH55Q06006G1

TEE

1шт.

b13

ZE72X04000

PLUG

1шт.

b14

ZE72X06000

PLUG

3шт.

b15

2444Z3326

HYD CONNECTOR

Connector

1шт.

b16

HH55L04004G2

TEE

1шт.

b17

PW64H01011P1

TEE

1шт.

b18

PH64H01057P1

CONNECTION

1шт.

b20

HH25S04004G1

HYD CONNECTOR

1шт.

b21

2444Z2525

HYD CONNECTOR

2шт.

b23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

b25

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

b26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

b27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

b28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

b30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

b32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

b33

ZC16X01800

CLIP

1шт.

b34

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

2шт.

b35

ZW16H10000

WASHER

2шт.

b39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

b40

HH45S04004G1

45 ELBOW

1шт.

b41

ZW16H06000

WASHER

2шт.
