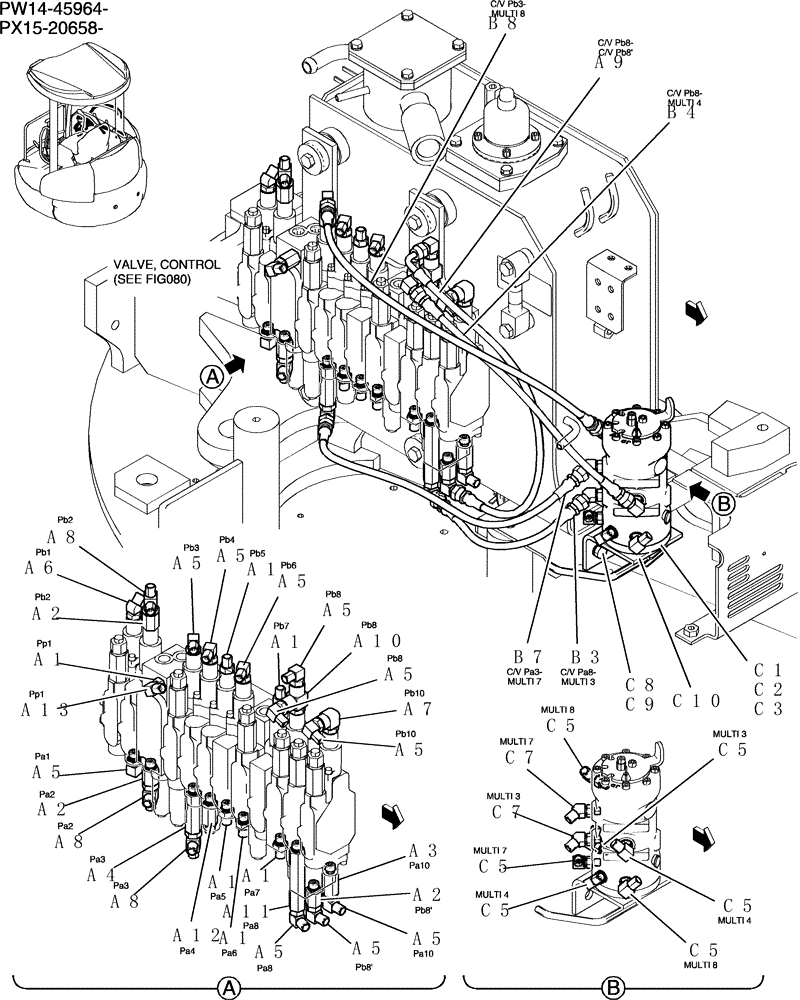

Запчасти Case CX31B (142-17[1]) - CONTROL LINES, REMOTE (MULTI) (00) - GENERAL & PICTORIAL INDEX

PW06H00008F1

Control, Main

1шт.

a1

HH25S04004G1

HYD CONNECTOR

4шт.

a2

2444Z2525

HYD CONNECTOR

3шт.

a3

2444T2524D2

HYD CONNECTOR

1шт.

a4

HH25R04004G3

CONNECTION

1шт.

a5

HH35S04004G1

90 ELBOW

10шт.

a6

HH45S04004G1

45 ELBOW

1шт.

a7

2444Z2894

90 ELBOW

Elbow

1шт.

a8

HH55L04004G1

TEE

3шт.

a9

HX33L03064DX

HOSE,4.8mm ID x 640mm L

1шт.

a10

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a11

2444T2611

HYD CONNECTOR

1шт.

a12

PU64H01002P1

HYD CONNECTOR

1шт.

a13

PM12H01001P1

ELBOW

1шт.

PW64H00055F1

LINE

Control Multi

1шт.

b3

HX23L03028DX

HOSE

1шт.

b4

HX23L03044DX

HOSE,4.8mm ID x 440mm L

1шт.

b7

HX23L03052DX

HOSE

1шт.

b8

HX23L03062DX

HYDRAULIC HOSE

Hose

1шт.

PW64H00056F1

VALVE

Instal

1шт.

c1

PX30V00060F1

CONTROL VALVE

Assy

1шт.

See(C.P.M)

1шт.

c2

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

4шт.

c3

ZW16H08000

WASHER

4шт.

c5

HH35S04002G1

ELBOW

6шт.

c7

HH45S04002G1

45 ELBOW

2шт.

c8

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

2шт.

c9

ZW16H12000

WASHER

2шт.

c10

PW64H01075P2

BRACKET

1шт.
