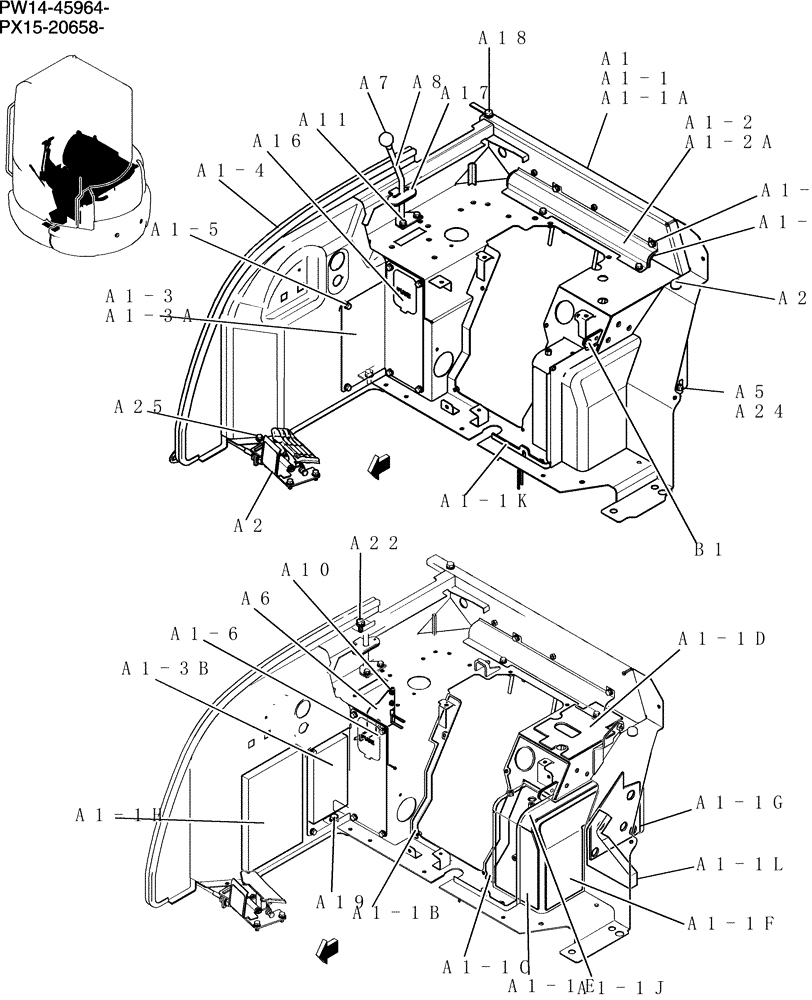

Запчасти Case CX31B (137-17[1]) - CONTROLS, OPERATORS (CAB) (00) - GENERAL & PICTORIAL INDEX

STAND ASSY, CONTROL

1шт.

PW03M00109F1

Controls, Operators

1шт.

a1

PW10M00016F1

STAND

Stand, Control

1шт.

a1-1

PW10M01383F1

STAND

Stand

1шт.

a1-1a

PW10M01382P1

Stand

1шт.

a1-1b

PW10M01202P1

FOAM INSULATION

1шт.

a1-1c

PW10M01103P1

FOAM INSULATION

1шт.

a1-1d

PW10M01366P1

FOAM INSULATION

1шт.

a1-1e

PW10M01180P1

FOAM INSULATION

1шт.

a1-1f

PH10M01045P1

FOAM INSULATION

1шт.

a1-1g

PW10M01369P1

FOAM INSULATION

1шт.

a1-1h

PW10M01203P1

FOAM INSULATION

1шт.

a1-1j

PW10M01181P1

FOAM INSULATION

1шт.

a1-1k

PW10M01279P1

RUBBER

1шт.

a1-1l

PW03M01939P1

INSULATION

Insulation

1шт.

a1-2

PH03M01468F1

COVER ASSY

Cover

1шт.

a1-2a

PH03M01467P1

COVER

Cover

1шт.

a1-2b

PH03M01472P1

RUBBER

1шт.

a1-3

PW03M01586F1

COVER ASSY

Cover

1шт.

a1-3a

PH03M01432P2

COVER

Cover

1шт.

a1-3b

PW10M01177P1

FOAM INSULATION

1шт.

a1-4

PM21C01573D1

WEATHERSEAL STRIP

1шт.

a1-5

PA03M01093D2

BOLT

Sems

10шт.

a1-6

PM22C01020DR

TRIM PANEL

1шт.

a2

PW55M00015F1

Pedal (See Fig No.138-60-1)

1шт.

p.138

1шт.

a5

PW03M01652P1

COVER

Cover

1шт.

a6

PH03M01435P1

COVER

1шт.

a7

PV03M01043P1

HANDLE GRIP

1шт.

a8

PW03M01624P1

LEVER

1шт.

a10

ZM61C06012

BOLT

Sems

2шт.

a11

ZM22C08016

BOLT

Sems

2шт.

a16

PW03M01543P1

GROMMET

1шт.

a17

PW03M01924P1

GROMMET

1шт.

a18

PM06C01045D3

BOLT

Sems

1шт.

a19

ZM22C10030

BOLT

Sems

1шт.

a21

PW03M01557P1

CAP

1шт.

a22

ZM22C10025

BOLT

Sems

1шт.

a24

PA03M01093D2

BOLT

Sems

2шт.

a25

ZM22C08020

BOLT

Sems

1шт.

PW03MO1714F1

GROMMET

1шт.

b1

PW030MO1638P2

GROMMET

1шт.
