(100-72[2]) - HYDRAULIC LINES, UPPER ANGLE DOZER

Запчасти Case CX31B (100-72[2]) - HYDRAULIC LINES, UPPER ANGLE DOZER (00) - GENERAL & PICTORIAL INDEX

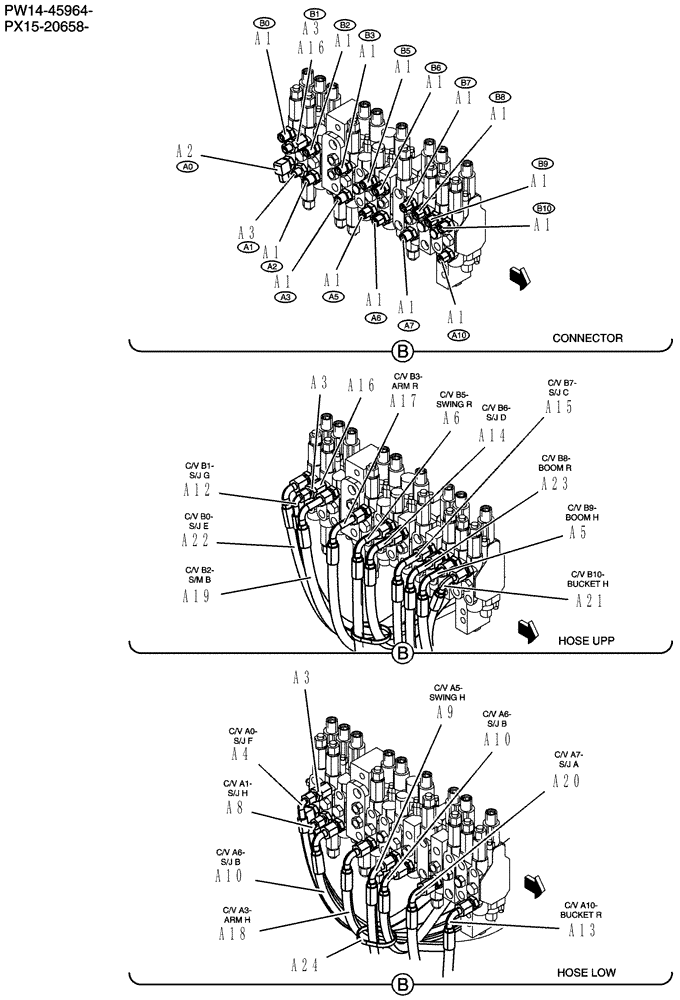

Схема запчастей Case CX31B - (100-72[2]) - HYDRAULIC LINES, UPPER ANGLE DOZER (00) - GENERAL & PICTORIAL INDEX
a1
a1
a1
a16
a9
a1
a2
a1
a6
a1
a10
a13
a15
a3
a18
a1
a16
a8
a1
a19
a21
a14
a1
a1
a24
a5
a1
a1
a20
a12
a22
a4
a1
a17
a1
a1
a3
a23
a3
a10
a3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW03H00039F1

Hyd , Upp

1шт.

a1

HH25S06006G1

HYD CONNECTOR

15шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

a3

HH25S04006G1

90 ELBOW

2шт.

a4

HX25L06090DY

HOSE

1шт.

a5

PW03H01128D2

HOSE

Hose

1шт.

a6

PW03H01101D6

HOSE,9.5mm ID x 740mm L

1шт.

a7

HH25R06006G5

CONNECTION

1шт.

a8

HX35L04086DX

HOSE

1шт.

a9

HX35L06054DY

HOSE,9.5mm ID x 540mm L

1шт.

a10

HX35L06094DY

HOSE,9.5mm ID x 940mm L

2шт.

a11

YN64H01068D6

RUBBER

1шт.

a12

HX35L04096DX

HOSE

1шт.

a13

PW03H01127D2

HOSE,9.5mm ID x 2120mm L

1шт.

a14

PW03H01101D3

HOSE,9.5mm ID x 1000mm L

1шт.

a15

PW03H01101D4

HOSE,9.5mm ID x 960mm L

1шт.

a16

2444Z2891

HYD CONNECTOR

1шт.

a17

PW03H01128D1

HOSE

Hose

1шт.

a18

PW03H01127D1

HOSE

Hose

1шт.

a19

PW03H01101D7

HOSE,9.5mm ID x 1100mm L

1шт.

a20

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a21

PW03H01127D3

HOSE

Hose

1шт.

a22

HX35L06105DY

HOSE,9.5mm ID x 1050mm L

1шт.

a23

PW03H01128D3

HOSE

Hose

1шт.

a24

PY01P01043D8

CABLE TIE,102mm L

1шт.

PW19H00026F1

Hyd, Swivel

1шт.

b1

ZE72X04000

PLUG

1шт.

b2

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

2шт.

b3

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

b4

HH45S04004G1

45 ELBOW

1шт.

b5

HH45S06006G1

45 ELBOW

3шт.

b6

YT42H01128P1

90 ELBOW

2шт.

b7

2444T2611

HYD CONNECTOR

1шт.

b8

2444Z2891

HYD CONNECTOR

2шт.

b9

2444Z3711

HYD CONNECTOR

2шт.
