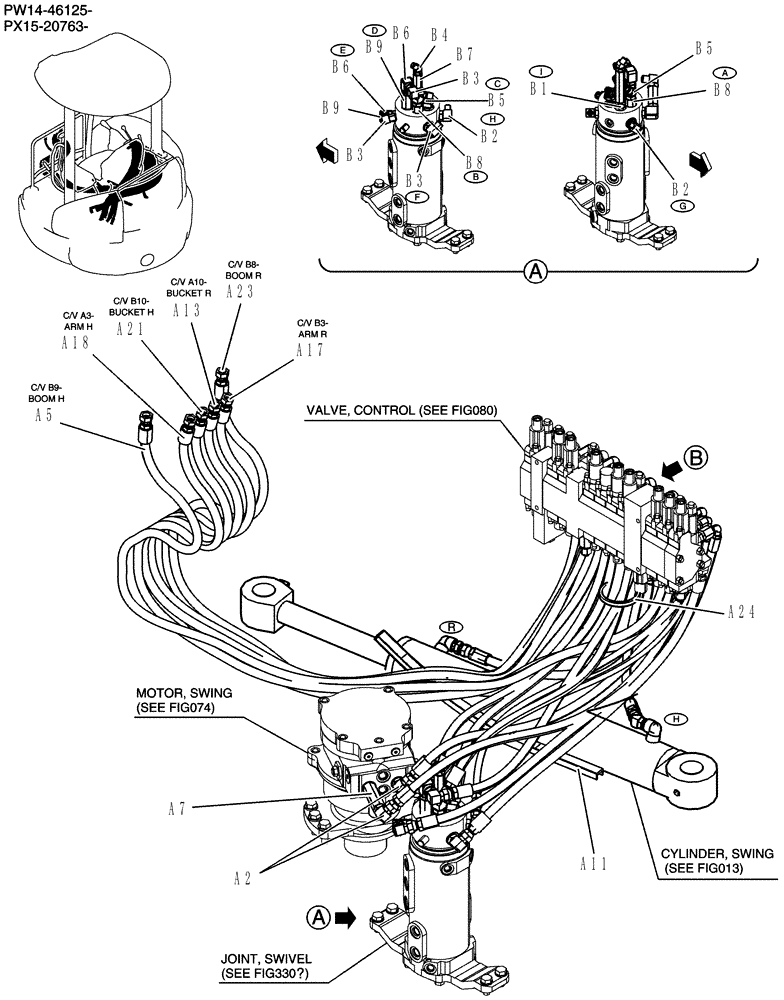

Запчасти Case CX31B (100-72[1]) - HYDRAULIC LINES, UPPER ANGLE DOZER (00) - GENERAL & PICTORIAL INDEX

PW03H00039F1

Hyd Upp

1шт.

a1

HH25S06006G1

HYD CONNECTOR

15шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

a3

HH25S04006G1

90 ELBOW

2шт.

a4

HX25L06090DY

HOSE

1шт.

a5

PW03H01128D2

HOSE

Hose

1шт.

a6

PW03H01101D6

HOSE,9.5mm ID x 740mm L

1шт.

a7

HH25R06006G5

CONNECTION

1шт.

a8

HX35L04086DX

HOSE

1шт.

a9

HX35L06054DY

HOSE,9.5mm ID x 540mm L

1шт.

a10

HX35L06094DY

HOSE,9.5mm ID x 940mm L

2шт.

a11

YN64H01068D6

RUBBER

1шт.

a12

HX35L04096DX

HOSE

1шт.

a13

PW03H01127D2

HOSE,9.5mm ID x 2120mm L

1шт.

a14

PW03H01101D3

HOSE,9.5mm ID x 1000mm L

1шт.

a15

PW03H01101D4

HOSE,9.5mm ID x 960mm L

1шт.

a16

2444Z2891

HYD CONNECTOR

1шт.

a17

PW03H01128D1

HOSE

Hose

1шт.

a18

PW03H01127D1

HOSE

Hose

1шт.

a19

PW03H01101D7

HOSE,9.5mm ID x 1100mm L

1шт.

a20

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a21

PW03H01127D3

HOSE

Hose

1шт.

a22

HX35L06105DY

HOSE,9.5mm ID x 1050mm L

1шт.

a23

PW03H01128D3

HOSE

Hose

1шт.

a24

PY01P01043D8

CABLE TIE,102mm L

1шт.

PW19H00026F1

Hyd , Swivel

1шт.

b1

ZE72X04000

PLUG

1шт.

b2

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

2шт.

b3

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

b4

HH45S04004G1

45 ELBOW

1шт.

b5

HH45S06006G1

45 ELBOW

3шт.

b6

YT42H01128P1

90 ELBOW

2шт.

b7

2444T2611

HYD CONNECTOR

1шт.

b8

2444Z2891

HYD CONNECTOR

2шт.

b9

2444Z3711

HYD CONNECTOR

2шт.
