Запчасти Case CX31B (100-01[1]) - HYDRAULIC LINES, UPPER (00) - GENERAL & PICTORIAL INDEX

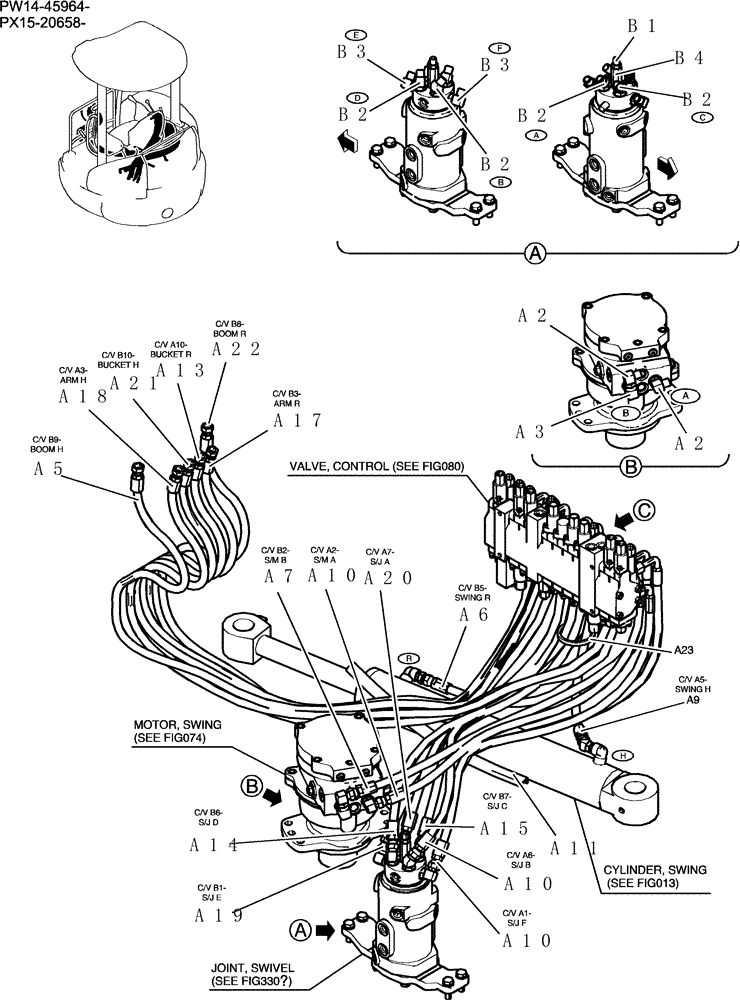

Схема запчастей Case CX31B - (100-01[1]) - HYDRAULIC LINES, UPPER (00) - GENERAL & PICTORIAL INDEX
a15
a19
a18
b1
a21
a10
a3
a10
a10
a7
a5
a2
b3
b2
b2
a2
b2
b3
a20
a11
a13
a22
b4
a17
a14
b2
a6

Артикул

Название

Примечание

Количество

PW03H00035F1

Hyd , Upp

1шт.

a1

HH25S06006G1

HYD CONNECTOR

16шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

a3

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a5

PW03H01128D2

HOSE

Hose

1шт.

a6

PW03H01101D6

HOSE,9.5mm ID x 740mm L

1шт.

a7

PW03H01101D2

HOSE,9.5mm ID x 1050mm L

1шт.

a9

HX35L06054DY

HOSE,9.5mm ID x 540mm L

1шт.

a10

HX35L06094DY

HOSE,9.5mm ID x 940mm L

3шт.

a11

YN64H01068D6

RUBBER

1шт.

a13

PW03H01127D2

HOSE,9.5mm ID x 2120mm L

1шт.

a14

PW03H01101D3

HOSE,9.5mm ID x 1000mm L

1шт.

a15

PW03H01101D4

HOSE,9.5mm ID x 960mm L

1шт.

a17

PW03H01128D1

HOSE

Hose

1шт.

a18

PW03H01127D1

HOSE

Hose

1шт.

a19

PW03H01101D7

HOSE,9.5mm ID x 1100mm L

1шт.

a20

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a21

PW03H01127D3

HOSE

Hose

1шт.

a22

PW03H01128D3

HOSE

Hose

1шт.

a23

PY01P01043D8

CABLE TIE,102mm L

1шт.

PW19H00019F1

Hyd , Swivel

1шт.

b1

HH25S04004G1

HYD CONNECTOR

1шт.

b2

HH45S06006G1

45 ELBOW

4шт.

b3

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

b4

2444Z4101

HYD CONNECTOR

1шт.

Выбрано товаров: 25
